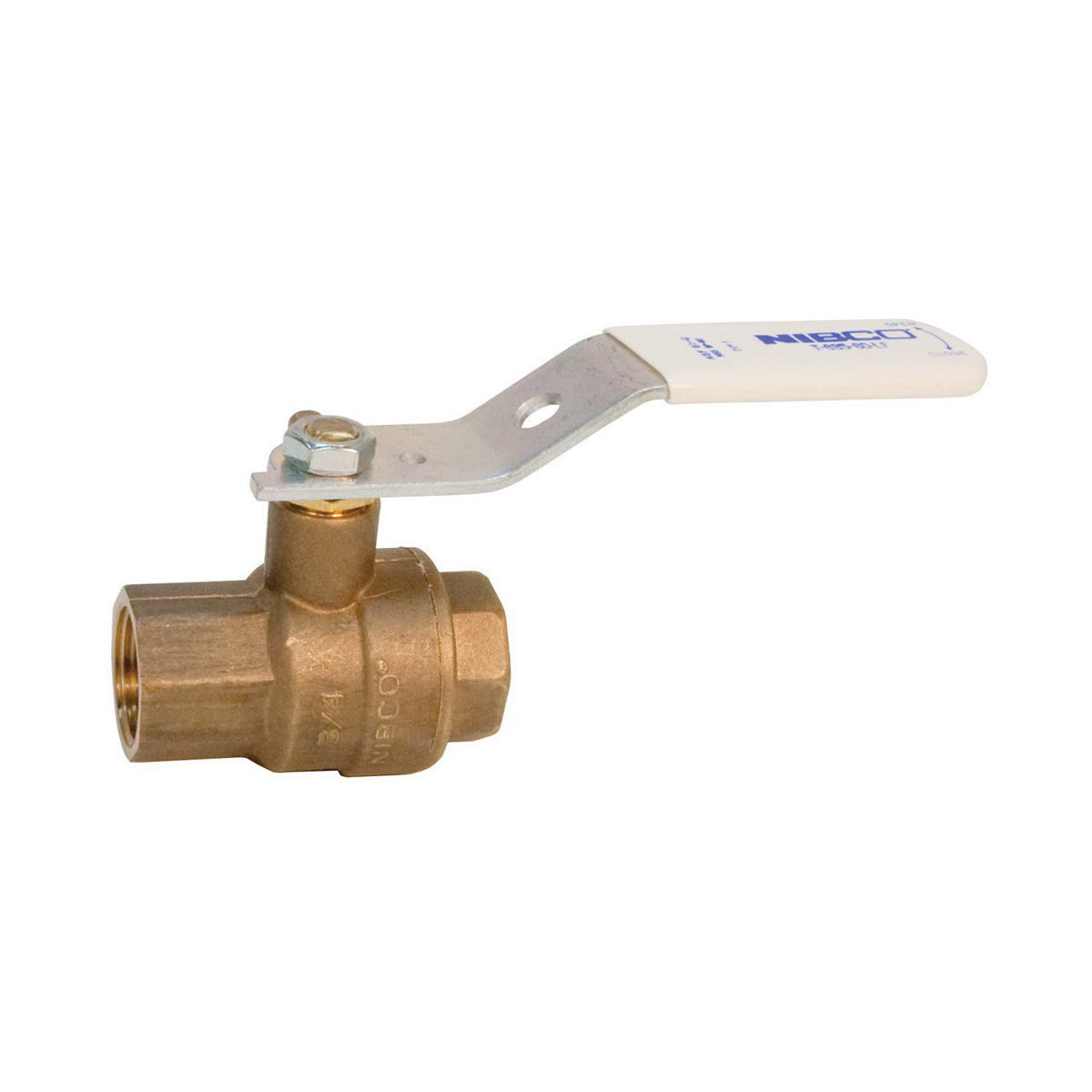

2-Piece Ball Valve 2 in Nominal FNPT End Style Silicon Bronze Body Full Port EPDM/Virgin PTFE Softgoods

2-Piece Ball Valve 2 in Nominal FNPT End Style Silicon Bronze Body Full Port EPDM/Virgin PTFE Softgoods

  • Manufacturer: NIBCO Inc.
  • Brand Name: NIBCO®
  • Part#: 257950
  • MPN: NL9901D
  • UPC: 039923299413
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The NIBCO® Lead free ball valve is constructed of Lead free dezincification-resistant (DZR) high quality performance bronze silicon alloy per ASTM specifications. The ball valve provides bubble-tight shut-off at 600 psi. The 2-Piece valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. The NIBCO® ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-Piece valve features thread ends for easy installation. Please refer to NIBCO® technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® valves are backed by the NIBCO® INC. 5-year 125 percent limited warranty.

NIBCO® HydraPure® Ball Valve, 2-Piece, Series: T-685-80-LF, 2 in Nominal, FNPT, 600 psi, Full Port, Media: Water, 2 in Orifice, Lever Operated Actuator, Silicon Bronze Ball, 4.52 in Inlet to Outlet Length, 3.56 in Top to Inlet Center, Silicon Bronze Body, Silicon Bronze Stem Trim, EPDM/Virgin PTFE, Import

Actuator Type      :      Lever Operated
Ball Material      :      Silicon Bronze
Body Material      :      Silicon Bronze
Domestic/Import      :      Import
End Style      :      FNPT
Inlet to Outlet Length      :      4.52 in
Media      :      Water
Nominal Size      :      2 in
Orifice Size      :      2 in
Port Type      :      Full
Pressure Rating      :      600 psi
Series      :      T-685-80-LF
Softgoods Material      :      EPDM/Virgin PTFE
Top to Inlet Center      :      3.56 in
Trim Material      :      Silicon Bronze Stem
Type      :      2-Piece
  • Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
  • White handle for easy lead-free identification
  • NIBCO® double oval lead-free body marking
  • Dezincification resistant
  • Blowout-proof stem
  • EPDM O-Ring/virgin PTFE packing/virgin PTFE seat
