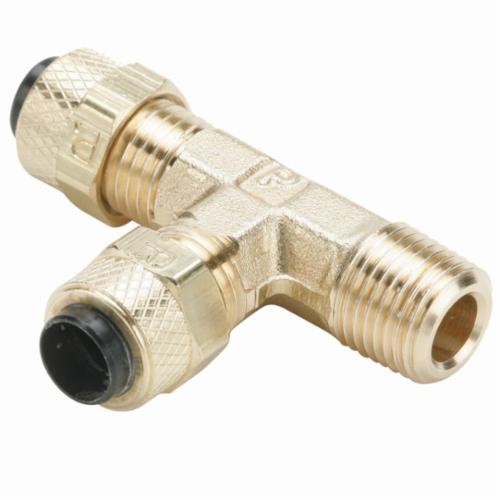

Parker® 171P-8-6 Poly-Tite 171P Compression Run Tee, 1/2 x 3/8 in, Tube x Male Pipe, Brass

Parker® 171P-8-6 Poly-Tite 171P Compression Run Tee, 1/2 x 3/8 in, Tube x Male Pipe, Brass

  • Manufacturer: Parker Hannifin
  • Brand Name: Parker®
  • Part#: 260977
  • MPN: 171P-8-6
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Parker's Poly-Tite fittings are designed to speed any installation. The body, nut and sleeve are furnished pre-assembled, ready for installation. The acetal copolymer sleeve resists creeping and stress caused from compression. The black acetal copolymer also resists ultra-violet ray attack and has excellent dimensional stability. Poly-Tite nuts will rotate around the sleeve as it tightens to prevent twisting and weakening of the plastic tubing. Poly-Tite fittings can be assembled and disassembled repeatly.

Parker® Compression Run Tee, Series: Poly-Tite 171P, Tee, 1/2 x 3/8 in Nominal, Tube x Male Pipe, 1.12 in Length, 150 psi, 0 to 150 deg F, Brass

End Style      :      Tube x Male Pipe
Fitting/Connector Type      :      Tee
Length      :      1.12 in
Material      :      Brass
Nominal Size      :      1/2 x 3/8 in
Pressure Rating      :      150 psi
Series      :      Poly-Tite 171P
Temperature Rating      :      0 to 150 deg F
  • Designed for use with polyethylene, nylon, polypropylene, vinyl and thermoplastic tubing
  • Machined in tube support
  • Black acetal copolymer sleeve
  • Knurled nut for ease of hand tightening
  • Pre-assembled fitting
  • Brass sleeve available for soft metal tubing
  • 11/16-20 straight thread
  • 0.323 in flow diameter
