Parker® 62PCA-4 Tube Union, 1/4 in, Compression, Brass

Parker® 62PCA-4 Tube Union, 1/4 in, Compression, Brass

  • Manufacturer: Parker Hannifin
  • Brand Name: Parker®
  • Part#: 261351
  • MPN: 62PCA-4
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Parker's Poly-Tite fittings are designed to speed any installation. The body, nut and sleeve are furnished pre-assembled, ready for installation. The acetal copolymer sleeve resists creeping and stress caused from compression. The black acetal copolymer also resists ultra-violet ray attack and has excellent dimensional stability. Poly-Tite nuts will rotate around the sleeve as it tightens to prevent twisting and weakening of the plastic tubing. Poly-Tite fittings can be assembled and disassembled repeatly. Compatible tubing's are polyethylene, nylon, polypropylene, vinyl and thermoplastic.

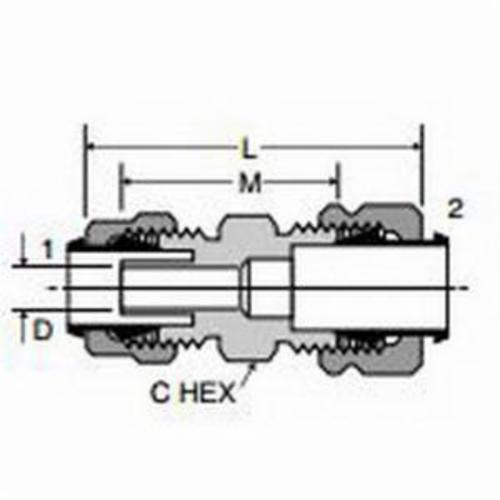

Parker® Tube Union, Series: 62PCA, Fitting/Connector Type: Union, 1/4 in Nominal, Compression, 7/16 in Hex, 1-1/4 in Length, 150 psi, 0 to 150 deg F, Brass

End Style      :      Compression
Fitting/Connector Type      :      Union
Hex Size      :      7/16 in
Length      :      1-1/4 in
Material      :      Brass
Nominal Size      :      1/4 in
Pressure Rating      :      150 psi
Series      :      62PCA
Temperature Rating      :      0 to 150 deg F
  • Designed for use with thermoplastic tubing
  • Machined in tube support
  • Black acetal copolymer sleeve
  • Brass sleeve available for soft metal tubing
  • Knurled nut for ease of hand tightening
  • Pre-assembled fitting
  • Chrome plated and stainless steel couplers available
  • 3/8-24 x 7/16-24 straight thread
  • 0.125 in Dia flow
