1-1/2 IN CLASS 300 X 1/16 FULL FACE GASKET C4324
- Manufacturer: APG
- Brand Name: APG
- Part#: 6615
- MPN: 13870FF062B0150FC
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites

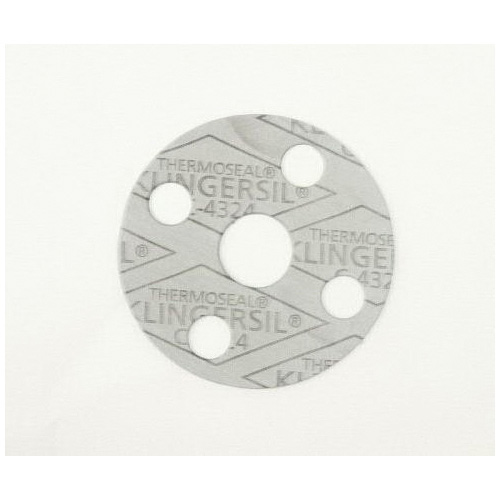

APG Compressed Flange Gasket, Full Face, 1-1/2 in Nominal, 1-29/32 in Inside Dia, 6-1/8 in Outside Dia, 1/16 in Thickness, 4 Bolt Holes, 7/8 in, Class: Class 300/400/600, C4324 Fiberglass/Aramid Blend, Domestic
| Bolt Hole Size | : | 7/8 in |
| Class | : | Class 300/400/600 |
| Domestic/Import | : | Domestic |
| Inside Diameter | : | 1-29/32 in |
| Material | : | C4324 Fiberglass/Aramid Blend |
| Nominal Size | : | 1-1/2 in |
| Number of Bolt Holes | : | 4 |
| Outside Diameter | : | 6-1/8 in |
| Thickness | : | 1/16 in |
| Type | : | Full Face |
- Nitrile binder
- Low pressure steam, water and gases
- Good for oils and fuels
- 1500 psi typical tensile strength (ASTM F152 Cross Grain)
- 4-1/2 in bolt hole center
- Change in tensile strength 30% maximum decrease (ASTM F152)
- Recycled fiberglass and aramid blend
