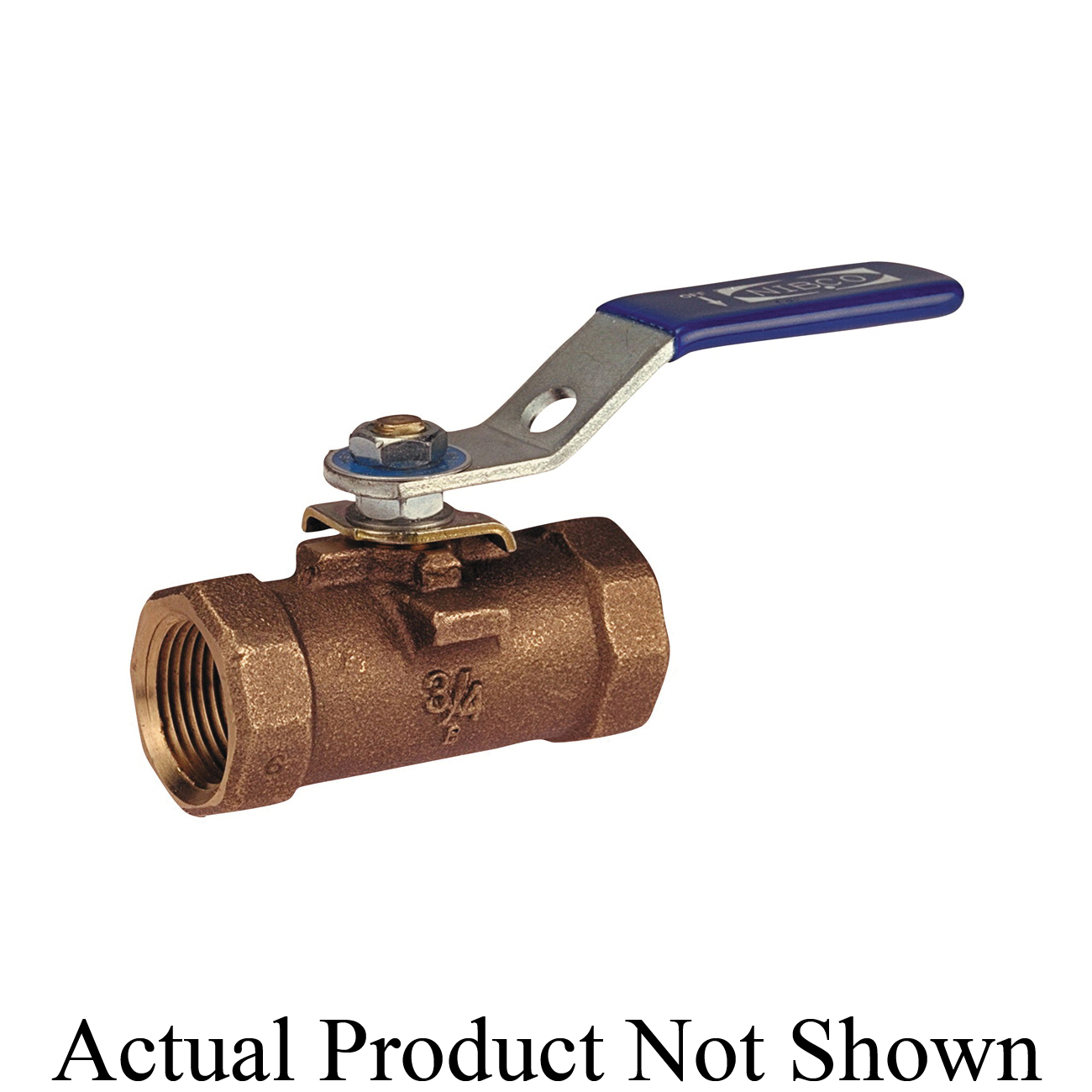

1-Piece Ball Valve 1/4 in Nominal NPT End Style Bronze Body Reduced Port PTFE Softgoods
- Manufacturer: NIBCO Inc.
- Brand Name: NIBCO®
- Part#: 257743
- MPN: NL94114
- UPC: 039923664228
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
The NIBCO® bronze Ball Valve provides ease of operation with quarter-turn (90 deg) open to close. The one-piece design eliminates leak paths and features NPT end connections for easy installation. Please refer to NIBCO® technical data sheets, valve selection guides and catalog for engineering and installation information. Choose NIBCO® Ball Valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® Ball Valves are backed by the NIBCO® INC. 5 years 125% limited warranty.
NIBCO® Ball Valve, 1-Piece, Series: T-560-BR-Y-20, 1/4 in Nominal, NPT, 600 psi, 400 deg F, Reduced Port, Media: Water, 0.38 in Orifice, Standard Lever Handle Actuator, Brass Ball, 2.63 in Inlet to Outlet Length, 1.63 in Top to Inlet Center, Bronze Body, Silicon Bronze Trim, PTFE, Domestic
| Actuator Type | : | Standard Lever Handle |
| Ball Material | : | Brass |
| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | NPT |
| Inlet to Outlet Length | : | 2.63 in |
| Media | : | Water |
| Nominal Size | : | 1/4 in |
| Orifice Size | : | 0.38 in |
| Port Type | : | Reduced |
| Pressure Rating | : | 600 psi |
| Series | : | T-560-BR-Y-20 |
| Softgoods Material | : | PTFE |
| Temperature Rating | : | 400 deg F |
| Top to Inlet Center | : | 1.63 in |
| Trim Material | : | Silicon Bronze Stem |
| Type | : | 1-Piece |
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Blowout-proof stem
- Brass ball and silicon bronze stem
- Dezincification-resistant
- Silicon bronze stem
