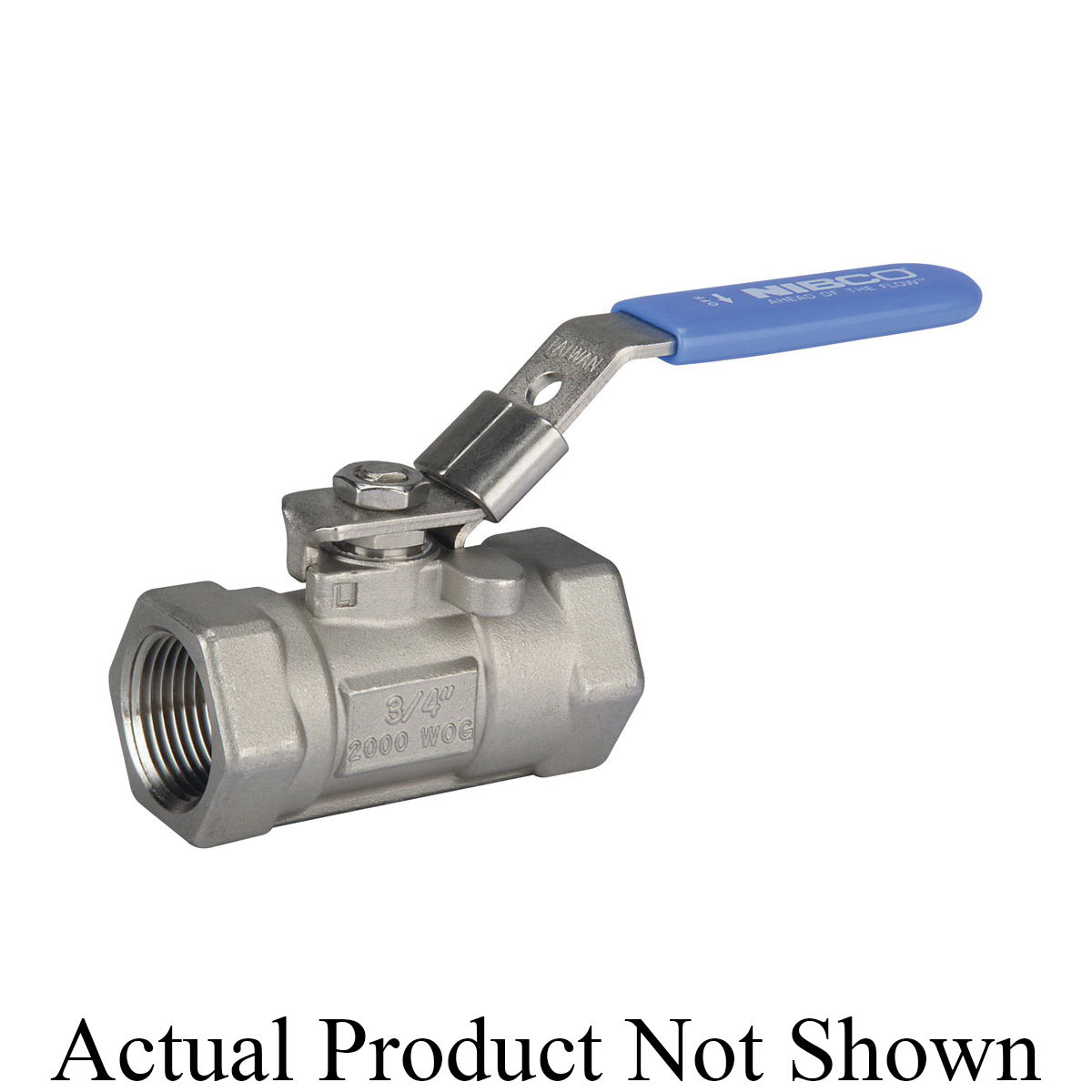

1-Piece Ball Valve 3/4 in Nominal NPT End Style Stainless Steel Body Reduced Port PTFE Softgoods
- Manufacturer: NIBCO Inc.
- Brand Name: NIBCO®
- Part#: 257759
- MPN: NL943K8P
- UPC: 039923668523
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
The NIBCO® stainless steel Ball Valve provides ease of operation with quarter-turn (90 deg) open to close. The reinforced PTFE seat ring and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. The one-piece design eliminates leak paths and features threaded ends for easy installation. Please refer to NIBCO® technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO® Ball Valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO® Ball Valves are backed by the exclusive NIBCO® INC. 5 years 125% limited warranty.
NIBCO® Ball Valve, 1-Piece, Series: T-560-S6R-66-LL, 3/4 in Nominal, NPT, 1000 psi, 400 deg F, Reduced Port, Locking Lever Handle Actuator, Stainless Steel Ball, 2.83 in Inlet to Outlet Length, 2.2 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, PTFE, Import
| Actuator Type | : | Locking Lever Handle |
| Ball Material | : | Stainless Steel |
| Body Material | : | Stainless Steel |
| Domestic/Import | : | Import |
| End Style | : | NPT |
| Inlet to Outlet Length | : | 2.83 in |
| Nominal Size | : | 3/4 in |
| Port Type | : | Reduced |
| Pressure Rating | : | 2000 psi |
| Series | : | T-560-S6R-66-LL |
| Softgoods Material | : | PTFE |
| Temperature Rating | : | 400 deg F |
| Top to Inlet Center | : | 2.2 in |
| Trim Material | : | 316 Stainless Steel Stem and RPTFE Seat |
| Type | : | 1-Piece |
- Valve pressure rating 1000 psi/69 bar non-shock cold working pressure
- Blowout-proof stem
- Stainless steel ball and stem
- 316 stainless steel stem and RPTFE seat
