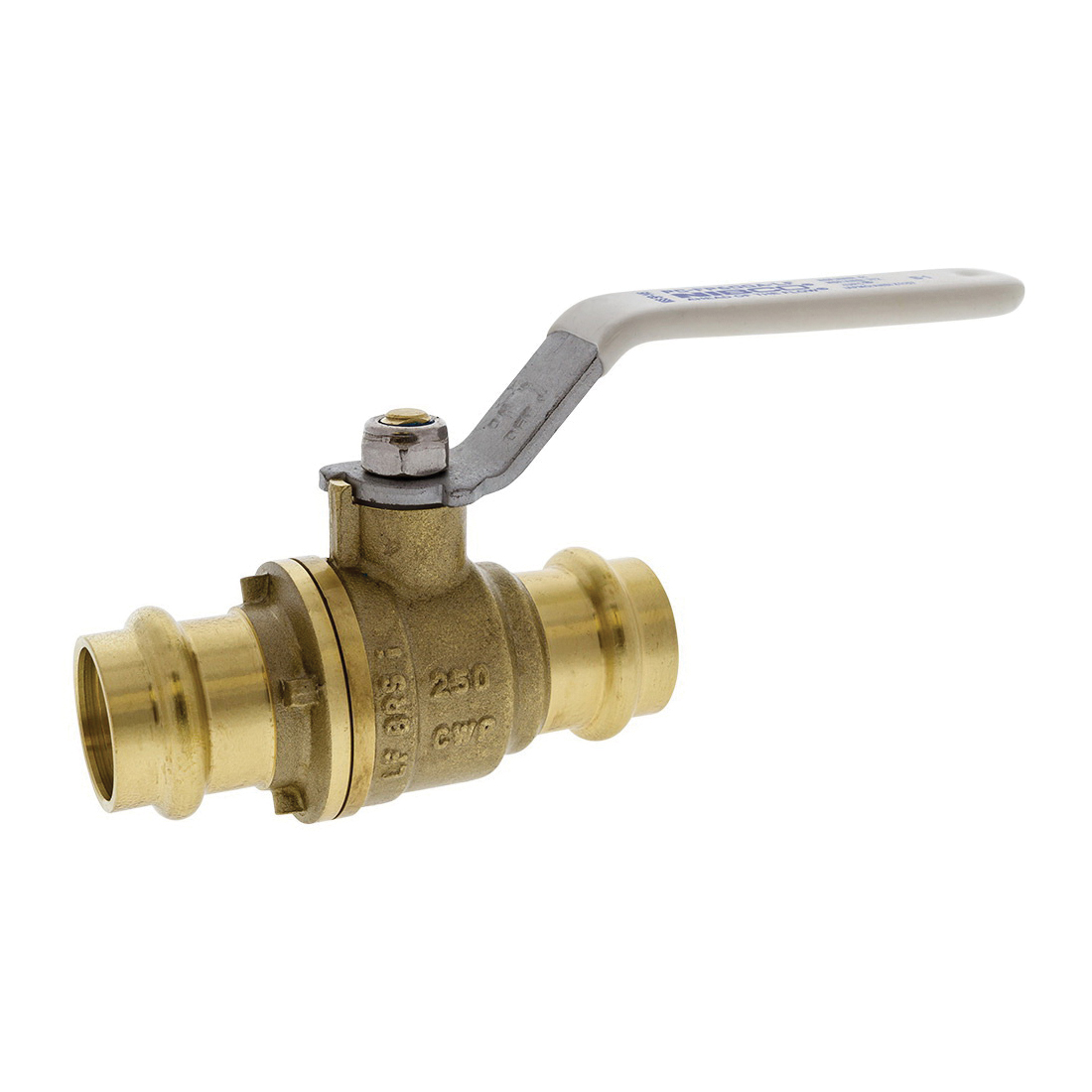

2-Piece 1/4-Turn Ball Valve, 2 in Nominal, Press x Female Press End Style, Forged DZR Brass Body

2-Piece 1/4-Turn Ball Valve, 2 in Nominal, Press x Female Press End Style, Forged DZR Brass Body

  • Manufacturer: NIBCO Inc.
  • Brand Name: NIBCO®
  • Part#: 292373
  • MPN: NF998KD
  • UPC: 039923414694
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The NIBCO® Press System® is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. The lead-free Ball Valve is specifically designed for use in systems that deliver water for human consumption. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. NIBCO® Press System® applies the proven performance of press technology to NIBCO® valves and fittings - the most specified flow control products in the industry. The NIBCO® Press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.

NIBCO® Press System® Ball Valve, 2-Piece 1/4-Turn, Series: PC-FP600A-LF, 2 in Nominal, Press x Female Press, 250 psi, 250 deg F, Full Port, Media: Hot and Cold Water, 2.137 in Orifice, Standard Lever Handle Actuator, Polished Chrome Brass Ball, 6.69 in Inlet to Outlet Length, 3.23 in Top to Inlet Center, Forged DZR Brass Body, Brass/PTFE Trim, EPDM/PTFE, 8.91 in L x 3.41 in W x 4.92 in H Dimensions, Import

Actuator Type      :      Standard Lever Handle
Ball Material      :      Polished Chrome Brass
Body Material      :      Forged DZR Brass
Dimensions      :      8.91 in L x 3.41 in W x 4.92 in H
Domestic/Import      :      Import
End Style      :      Female Press
Inlet to Outlet Length      :      6.69 in
Media      :      Hot and Cold Water
Nominal Size      :      2 in
Orifice Size      :      2.137 in
Port Type      :      Full
Pressure Rating      :      250 psi CWP
Series      :      PC-FP600A-LF
Softgoods Material      :      EPDM/PTFE
Temperature Rating      :      250 deg F
Top to Inlet Center      :      3.23 in
Trim Material      :      Brass/PTFE
Type      :      2-Piece 1/4-Turn
  • Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
  • Copper-to-copper connections
  • Blowout-proof stem
  • Reinforced PTFE seat rings
  • Press leak-detection feature
  • Dezincification-resistant
  • Not intended for gas use
