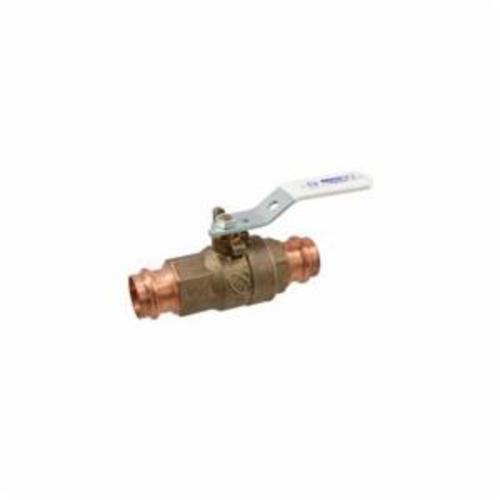

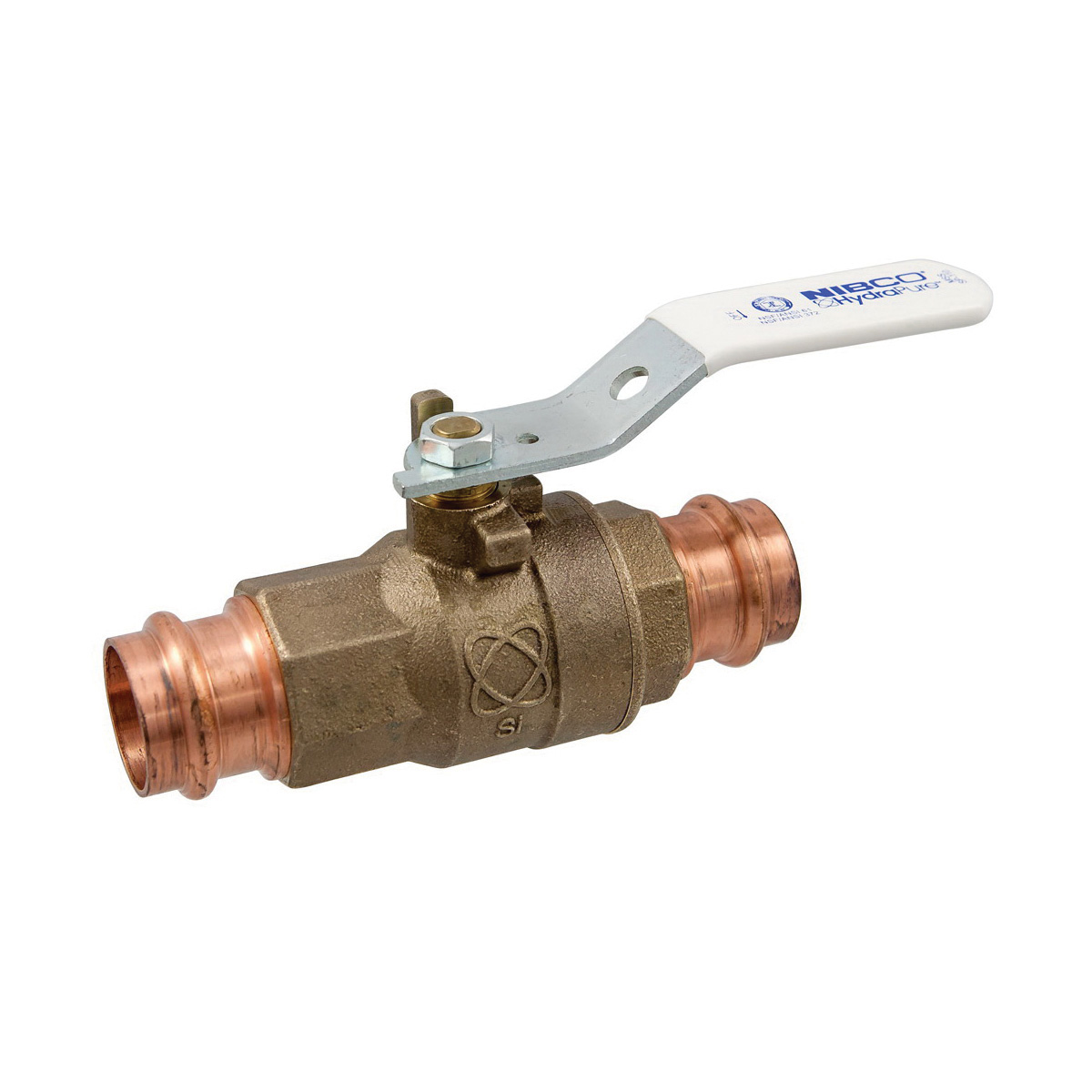

2-Piece Ball Valve, 1-1/2 in Nominal, Press x Female Press End Style, Silicon Bronze Body, Full Port

The NIBCO® Press System® is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. The lead-free HydraPure™ Performance Bronze™ Ball Valve is specifically designed for use in systems that deliver water for human consumption. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. NIBCO® Press System® applies the proven performance of press technology to NIBCO® valves and fittings - the most specified flow control products in the industry. The NIBCO® Press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO® Press System® valves are backed by a 5 years limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.

NIBCO® Press System® Ball Valve, 2-Piece, Series: PC-585-80-LF, 1-1/2 in Nominal, Press x Female Press, 250 psi, 250 deg F, Full Port, Media: Water, 1-1/2 in Orifice, Standard Lever Actuator, Silicon Bronze Ball, 7.56 in Inlet to Outlet Length, 3.32 in Top to Inlet Center, Silicon Bronze Body, Silicon Bronze Trim, EPDM/PTFE, Domestic

• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Copper-to-copper connections
• Blowout-proof stem
• Reinforced PTFE seat rings
• Press leak-detection feature
• Dezincification-resistant
• Silicon bronze stem

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_NF74006_Catalog.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_NF840X6_Specification_Sheet.pdf
