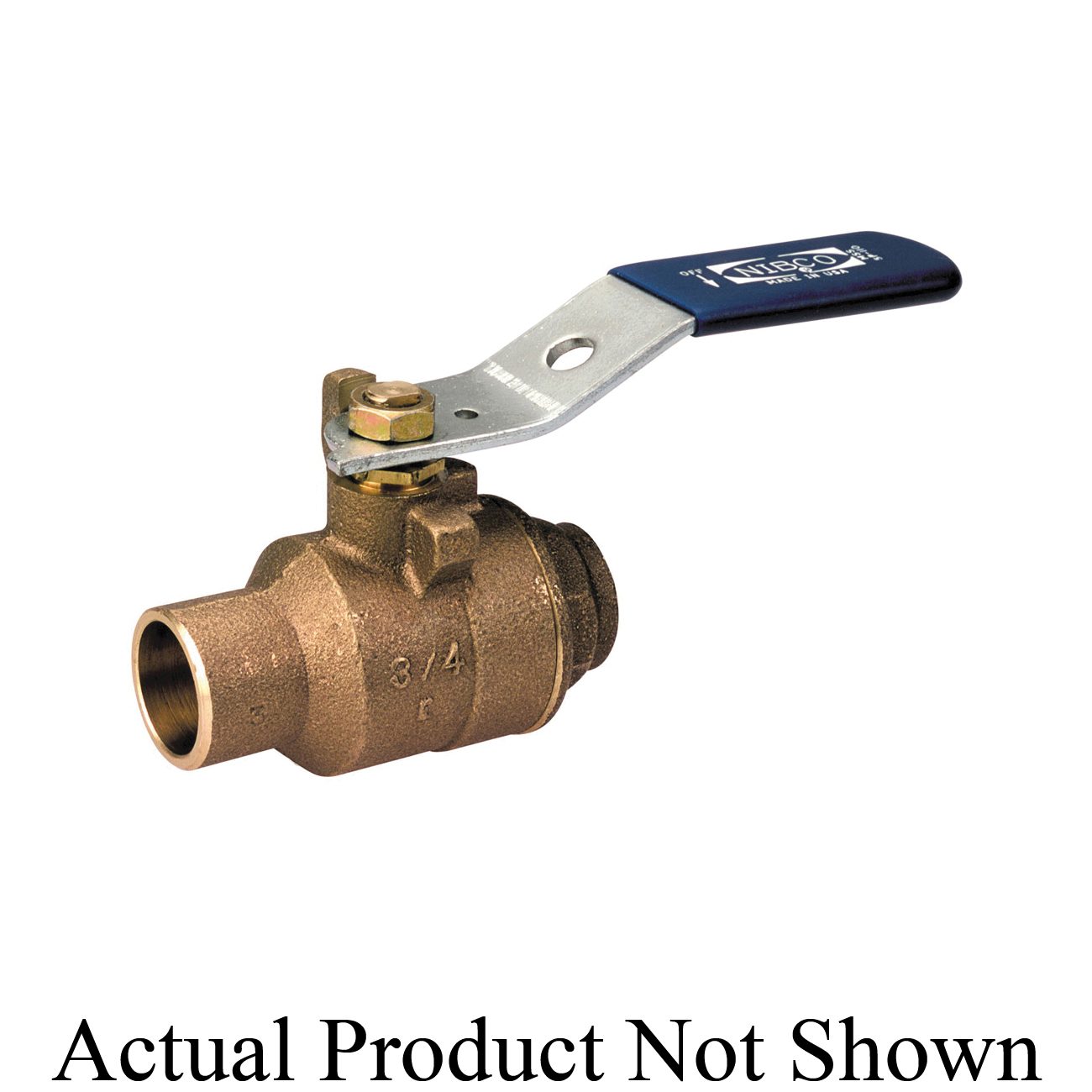

2-Piece Ball Valve 3 in Nominal Solder End Style Cast Red Bronze Body Conventional Port PTFE Softgoods

The NIBCO® bronze Ball Valve provides ease of operation with quarter-turn (90 deg) open to close. Options include NIB-SEAL® insulated handle that eliminates condensate. The valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam and hot water heating service. Please refer to NIBCO® technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® Ball Valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® Ball Valves are backed by the NIBCO® INC. 5 years 125% limited warranty.

NIBCO® Ball Valve, 2-Piece, Series: S-580-70, 3 in Nominal, Solder, 600 psi, 400 deg F, Conventional Port, Media: Air/Gas/Water, 2-1/2 in Orifice, Standard Lever Handle Actuator, Polished Chrome Brass Ball, 8.78 in Inlet to Outlet Length, 4.41 in Top to Inlet Center, Cast Red Bronze Body, Silicon Bronze Trim, PTFE, Domestic

• Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
• Stainless steel ball and stem
• Vented ball
• Blowout-proof stem
• Dezincification-resistant
• Polished chrome brass ball, silicon bronze stem
• Silicon bronze stem

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_NG10406_Catalog.pdf
• SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_0400015_SDS.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_NL95T2B_Specification_Sheet.pdf
• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_NL840XD_Warranty.pdf
