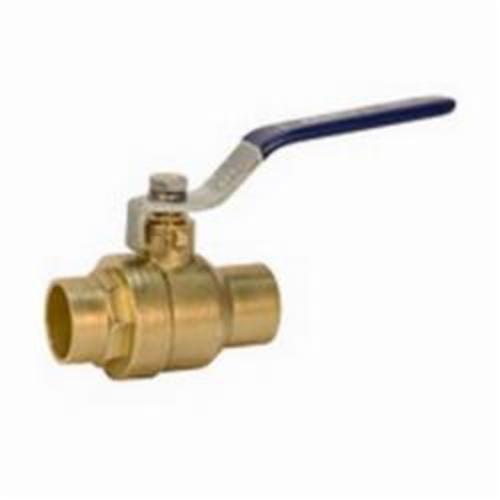

2-Piece Ball Valve 3/8 in Nominal Solder Female End Style Brass Body Full Port Fluorocarbon/PTFE Softgoods

The NIBCO® brass ball valve with solder end connections provides bubble-tight shut-off. The valve's PTFE seats and hard chrome-plated brass ball exhibit high chemical resistance properties. The valve is ideal for hot/cold water and gas applications. The NIBCO® brass ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-Piece valve features solder end connections for easy installation. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO® INC. 2-year limited warranty.

NIBCO® Ball Valve, 2-Piece, Series: S-FP-600A, 3/8 in Nominal, Solder Female End Style, 600 psi Pressure, Full Port, Media: Gas/Water, 0.39 in Orifice, Standard Lever Actuator, Chrome Plated Brass Ball, 1.76 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Ball Seat Trim, Fluorocarbon/PTFE Softgoods, Domestic/Import: Import

• Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
• Blowout-proof stem
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Due to standard approvals, lever handles and nuts are not interchangeable between solder and threaded
• PTFE stem packing/fluorocarbon O-Ring

• SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_NJ830XF_SDS.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_NJ998H5_Specification_Sheet.pdf
