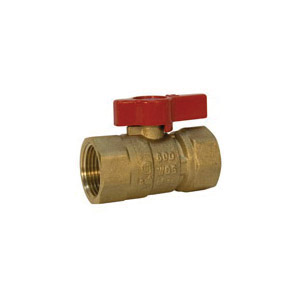

2-Piece Quarter-Turn Ball Valve 1/2 in Nominal FNPT End Style Forged Brass Body Reduced Port Nitrile Softgoods

The NIBCO® brass gas ball valve is recommended for use with indoor gas appliance service. The two-piece valve meets the standards for indoor gas appliance connections, and is certified for use with natural, manufactured, mixed, liquefied petroleum and LP gas/air mixtures. The NIBCO® brass ball valve provides ease of operation with quarter-turn (90 deg) open to close. The valve features threaded end connections for easy installation. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO® INC. 2-year limited warranty.

NIBCO®, GB1A 1/2, Ball Valve, 2-Piece Quarter-Turn, Series: GB1A, 1/2 in Nominal, FNPT End Style, 600 psi Pressure, Reduced Port, Media: Natural/Manufactured/Mixed LP Gas/Air Mixtures, 0.47 in Orifice, Lever Handle Actuator, 2.21 in Inlet to Outlet Length, 1.19 in Top to Inlet Center, Forged Brass Body, Nitrile Softgoods, Import

• Not for water service
• Nitrile O-ring
• Glass RPTFE seat
• 1/2 psi for indoor appliance connections per ANSI Z21.15 and CSA 9.1
• Aluminum lever handle
• Brass stem/PTFE seat
• Valve pressure rating 600 psi non-shock cold working pressure

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_GB1A_1_2_Specification_Sheet.pdf
• Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_N012116_Warranty.pdf
