Dixon Valve & Coupling PPF300 101241
  1. pin-int

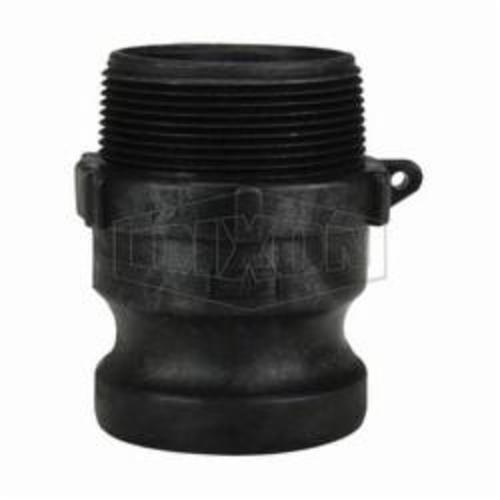

3 IN MALE X MPT F POLY CAMLOCK

3 IN MALE X MPT F POLY CAMLOCK

  • Manufacturer: Dixon Valve & Coupling
  • Brand Name: Dixon Valve & Coupling
  • Part#: 101241
  • MPN: PPF300
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 3 in Nominal Size, Male Adapter x MNPT, 4-1/4 in Length, 60 psi, Polypropylene, Domestic

Domestic/Import      :      Domestic
End Style      :      Male Adapter x MNPT
Fitting/Connector Type      :      Adapter
Length      :      4-1/4 in
Material      :      Polypropylene
Nominal Size      :      3 in
Pressure Rating      :      60 psi
Type      :      Type F
  • Manufactured from glass-filled polypropylene
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • Polypropylene cam and groove should not be mixed with metal fittings
  • Not recommended for use with PTFE gaskets
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_PPLSS22_Catalog.pdf
