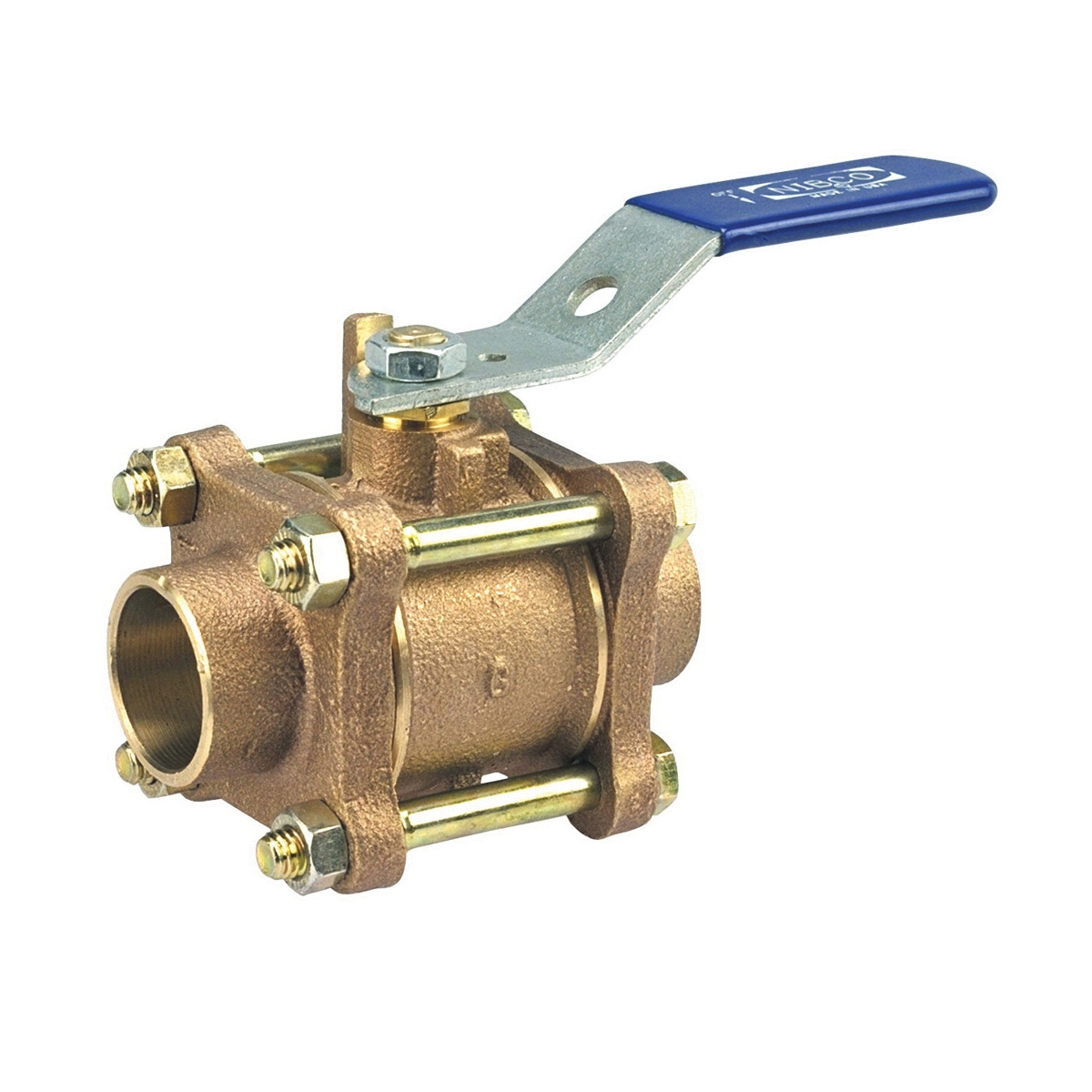

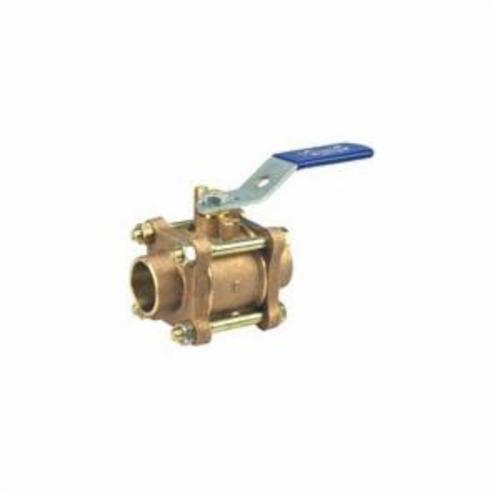

3-Piece Ball Valve 3/4 in Nominal Solder End Style Bronze Body Full Port PTFE/Fluorocarbon Rubber Softgoods
- Manufacturer: NIBCO Inc.
- Brand Name: NIBCO®
- Part#: 257739
- MPN: NJ93008
- UPC: 039923686466
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
The NIBCO® bronze ball valve features solder end connections for easy installation. The 3-Piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. May be used for isolation and throttling (half open to full open only). The valve is repairable in-line. The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close and bubble-tight shut-off at 600 psi. The PTFE seat ring and brass hard chrome plated ball exhibit high chemical resistance properties and is recommended for many high pressure applications. Options include NIB-SEAL® insulated handle that eliminates condensate. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® INC. 5-year 125% limited warranty.
NIBCO® Ball Valve, 3-Piece, Series: S-595-Y, 3/4 in Nominal, Solder, 600 psi, 400 deg F, Full Port, Media: Air/Gas/Water, 3/4 in Orifice, Lever Handle Actuator, Brass Ball, 2.94 in Inlet to Outlet Length, 2 in Top to Inlet Center, Bronze Body, Silicon Bronze Stem Trim, PTFE/Fluorocarbon Rubber, Domestic
| Actuator Type | : | Lever Handle |
| Ball Material | : | Brass |
| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | Solder |
| Inlet to Outlet Length | : | 2.94 in |
| Media | : | Air/Gas/Water |
| Nominal Size | : | 3/4 in |
| Orifice Size | : | 3/4 in |
| Port Type | : | Full |
| Pressure Rating | : | 600 psi |
| Series | : | S-595-Y |
| Softgoods Material | : | PTFE/Fluorocarbon Rubber |
| Temperature Rating | : | 400 deg F |
| Top to Inlet Center | : | 2 in |
| Trim Material | : | Silicon Bronze Stem |
| Type | : | 3-Piece |
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
- Blowout-proof stem
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- PTFE seat ring/packing and fluorocarbon rubber O-Ring seal
- Standard lever handle
