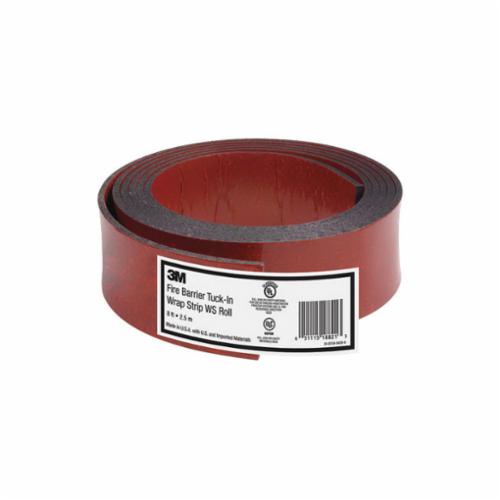

3M™ 7000006390 Fire Barrier Wrap Strip, 8.2 ft L x 2-1/2 in W, 3 hr Fire Rating, UL Listed

3M™ fire barrier tuck-in wrap strips are designed to help prevent the passage of fire and smoke in new or existing non-metallic (e.g. Plastic) pipe penetrations through wall or floor assemblies. 3M™ fire barrier tuck-in wrap strips are engineered primarily for top-side firestop installations and help eliminate the need for retaining collars, concrete screws, ladders or most other material and equipment necessary for bottom-side installations. 3M™ fire barrier tuck-in wrap strips come ready-to-install with an adhesive backed closure label (excludes WS roll). The wrap strips can be easily installed in both concrete floor and wall assemblies, as well as gypsum wallboard assemblies.

3M™, 7000006390, Wrap Strip, Fire Barrier, 8.2 ft Length, 2-1/2 in Width, Fire Rating: 3 hr, Specifications Met: UL Listed, Gray/Red

• Engineered for top side, firestop, through-penetration installations
• Expands 100x in volume
• Tested firestop performance, tested and listed up to 3 hr in accordance with astm e814 (ul 1479)
• Reduces excess hardware needs, top-side concrete floor installations help eliminate the need for steel retaining collars and most other bottom-side installation equipment and materials
• Easy install, adhesive-backed label offers quick installation
• Available in rolls or strips - ready-to-install 3/16 in thick x 2-1/2 in wide wrap strips - available in 8.2 ft rolls or strips precut to length for 2 in, 3 in and 4 in non-metallic pipes
• Flexible strips - the flexible intumescent strip wraps around the pipe and easily slides into the annular space and is designed to firestop plastic pipe penetrations through fire-rated floors and walls

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0780cff354d038f17b5702d3022d404ba70dd42a553a9d12753b4104c0c55a29.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_29a3fb655c6646090eb70f1edcf32c72d1a1f324196272da282a91794158b541.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7f58ca66964df04b3420a66c31588becfa4fde0c3d979d508c3ee7733b43a2ed.pdf
