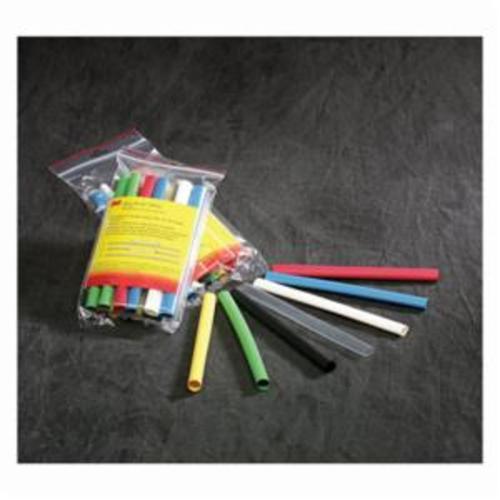

3M™ 7000031557 FP301 General Purpose Thin Wall Heat Shrink Tubing Kit, 21 Pieces, Polyolefin, Assorted

3M™ heat shrink tubing fp-301 is color coded for quick and easy identification of the wire. This split-resistant, flame-retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire-harness covering, fire-resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 deg f ( 55 to 135 deg C). UL Listed, SAE AS23053/5, class 1, csa certified and rohs 2011/65/EU compliant.

3M™, 7000031557, Heat Shrink Tubing Kit, General Purpose Thin Wall, Series: FP301, Specifications: Single (Thin) Wall, 212 deg Shrink, 2:1 Shrink Ratio, -67 to 275 deg Operating, 21 Piece, Polyolefin, Assorted, 0.093 in ID x 6 in L x 0.02 in THK Dimensions

• Flame-retardant tubing is rated for 600 vac applications
• 10 years shelf life from date of manufacture
• Low temperature flexibility, no cracking
• No dripping, flowing, cracking heat shock
• 10^15 ohm-cm volume resistivity
• 900 v/mil dielectric strength
• 0.20% water absorption
• 2400 psi tensile strength
• Flammability, most colors are self-extinguishing and meet ul 224 all-tubing flame test (except clear)
• Multiple colors available - tubing is available in blue, green, red, white, yellow, black and clear

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_054007_40650_Catalog.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_3M_051135_36618_Specification_Sheet.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f644a19566e9b02df5c6695699340f4d71272766fc550e9e2d172785e9a576c7.pdf
• VIDEO LINK http://images.salsify.com/video/upload/s--hs1ErooU--/b6d539b515efe739520d920d12386315ea9eda2e.mp4
