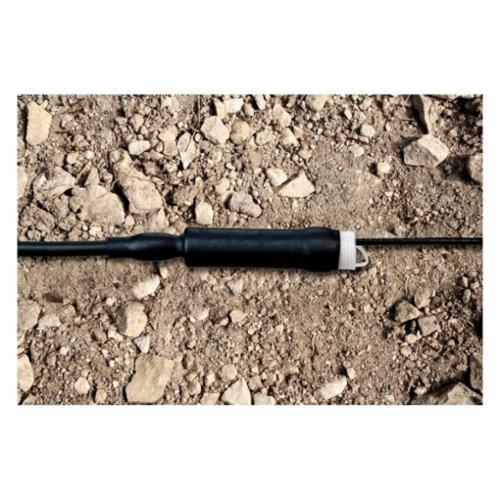

3M™ 7000058805 QSLV-M Cold Shrink Quick Splice, 0.4 in Dia Min, 1.6 in Max Diameter, 2-1/2 in L, 1400 psi Tensile Strength, EPDM
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437780
- MPN: 7000058805
- UPC: 051128572375
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: EACH
-
Price:
- Add To Favorites
The 3M™ QSLV-M series cold shrink quick splice kit offers a unique, 3-core system, so you simply place the sleeve on a connector and remove 2 of the cores to start splicing. The last core is used for supporting the structure of the sleeve itself. The kit also features a factory expanded tubular sleeve with waterproof sealing mastic tape on each end. configured to adapt to different connector sizes, this kit also prevents damage to the seal and insulating aspects, making it a true performer. This product is rohs 2011/65/EU compliant and ANSI Certified.
3M™, 7000058805, Quick Splice, Cold Shrink, Series: QSLV-M, 0.4 in Diameter Minimum, 1.6 in Diameter Maximum, 2-1/2 in Length, 1400 psi Tensile Strength, Elongation: 7.5, 365 V/mil Dielectric Strength, EPDM, Black
| Color | : | Black |
| Dielectric Strength | : | 365 V/mil |
| Elongation | : | 7.5 |
| Length | : | 2-1/2 in |
| Material | : | EPDM |
| Maximum Diameter | : | 1.6 in |
| Minimum Diameter | : | 0.4 in |
| Series | : | QSLV-M |
| Tensile Strength | : | 1400 psi |
| Type | : | Low Voltage Splice |
- Low voltage single conductor insulated cable
- 1 kV voltage rating
- Simple hand installation, no tools required
- No heat source
- Accommodates wide range of cable sizes, including street lighting
- Excellent wet electrical properties
- Good thermal stability during storage and shipping
- Seals tight, retains resiliency and pressure, even after years of aging and exposure
- Resists acids and alkali
- 2 awg to 1000 kcmil (cu), 2 awg to 500 kcmil (al) conductor size
- 0.4 to 1.6 in od cable insulation
- Rubber sleeve with sealing mastic provides a water-resistant sealing
- Factory-expanded for easy installation
- For direct-bury, secondary low-voltage, non-shielded cable splices
- Rated for up to 1 kV applications
Instruction/Installation Manual
