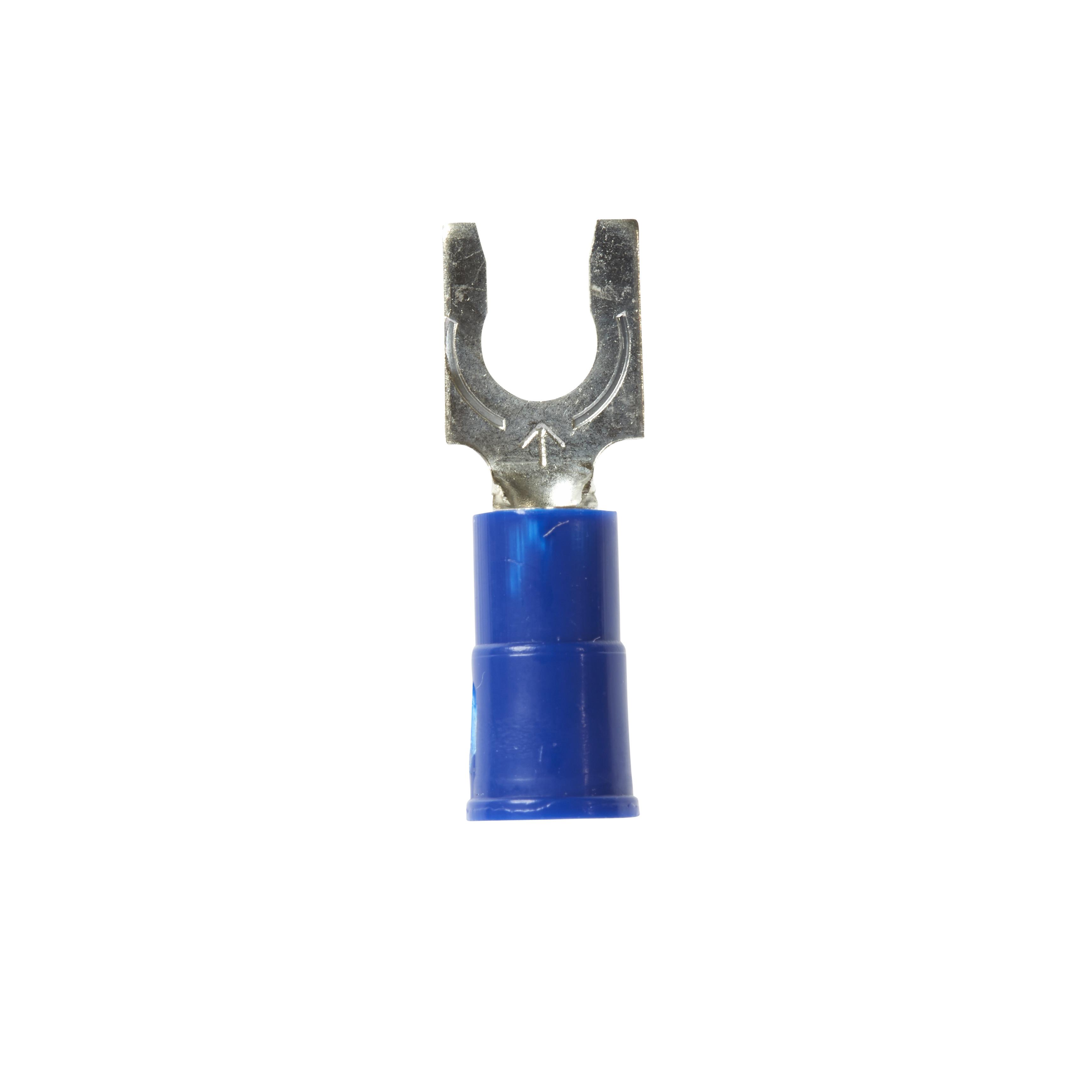

3M™ 7010398237 Insulated Fork Terminal, 16 to 14 AWG Conductor, 0.9 in L, Butted Seam Barrel, Vinyl, Blue
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437367
- MPN: 7010398237
- UPC: 051128590300
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: EACH
-
Price:
- Add To Favorites
3M™ Scotchlok™ standard fork terminal is color coded for quick and easy identification of the wire size required. It has a butted seam barrel that is covered by a funnel designed, rigid molded, polyvinyl chloride sleeve to guide the wire into position for ease of installation.
3M™, 7010398237, Fork Terminal, Insulated, Stranded Copper Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.9 in Length, Butted Seam Barrel, 0.09 in ID x 0.25 in L Barrel, Fork Tongue, 0.34 in W x 0.03 in THK Tongue, 600 to 1000 VAC, Specifications: 0.17 in Dia Max Insulation, 0.29 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Blue
| Barrel Size | : | 0.09 in ID x 0.25 in L |
| Barrel Type | : | Butted Seam |
| Color | : | Blue |
| Conductor Size | : | 16 to 14 AWG |
| Conductor Type | : | Stranded Copper |
| Finish | : | Tin Plated |
| Length | : | 0.9 in |
| Material | : | Vinyl |
| Specifications | : | 0.17 in Dia Max Insulation, 0.29 in Clearance |
| Stud Size | : | #8 |
| Temperature Rating | : | -40 to 221 deg F |
| Tongue Size | : | 0.34 in W x 0.03 in THK |
| Tongue Type | : | Fork |
| Type | : | Insulated Standard |
| Voltage Rating | : | 600 to 1000 VAC |
- Blue vinyl insulated, brazed seam barrel ensures a secure fit and offers reliable performance
- Funnel designed, PVC sleeve offers easy insertion of wires
- Wider tongue design for use on-free standing studs
- Electrolytic copper construction offers good conductivity
- Abrasion and corrosion-resistant, flared, vinyl sleeve insulation ensures easy crimping
- Crimp termination
- Free hanging (in-line) mounting
