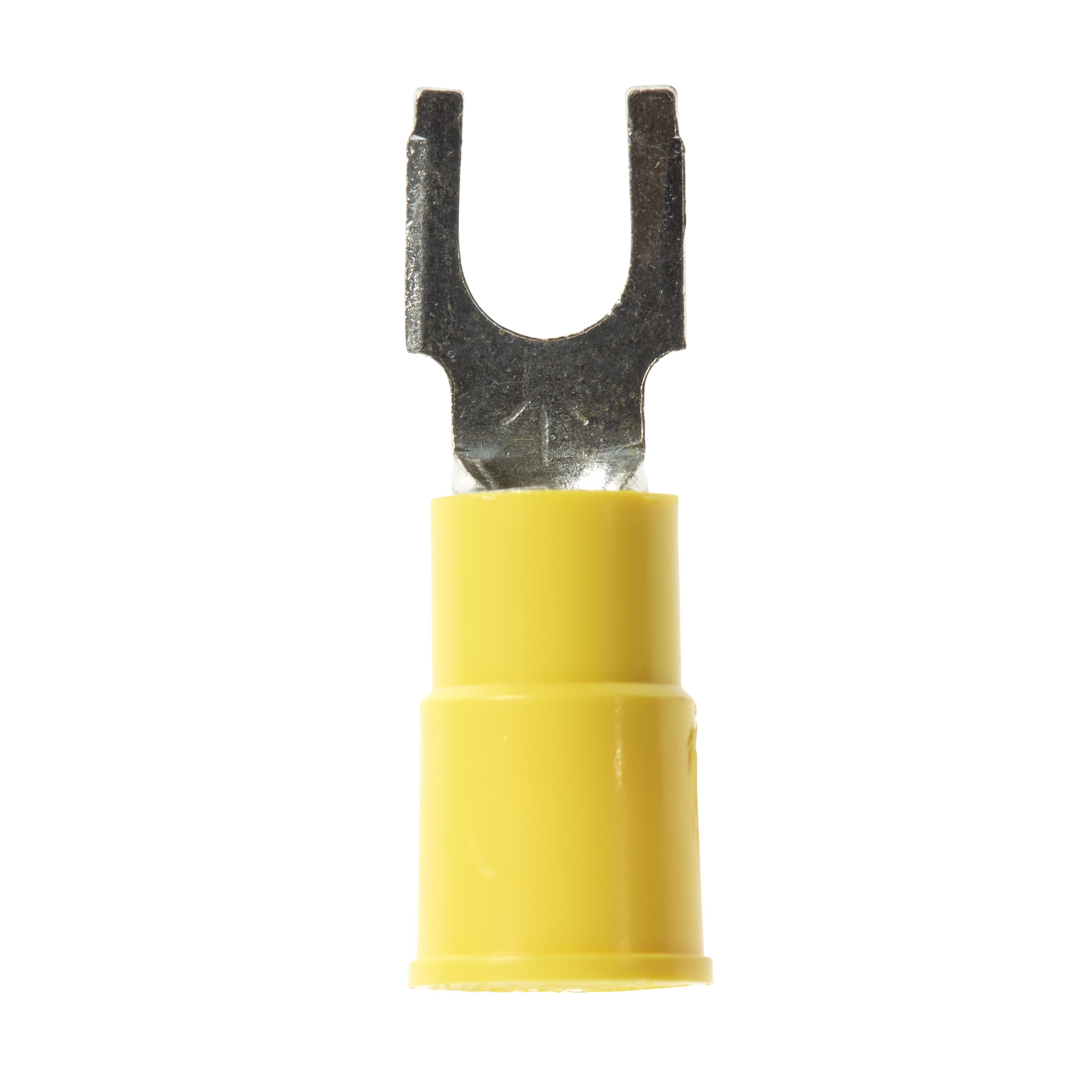

3M™ 7010398240 Insulated Block Fork, 12 to 10 AWG Conductor, 1.03 in L, Butted Barrel, ETP Copper/Vinyl, Yellow
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437894
- MPN: 7010398240
- UPC: 051128590362
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: EACH
-
Price:
- Add To Favorites
Block forks have the same strength as the standard fork, but are designed to use in a terminal block because their sides lie flat against the barrier portion of the terminal block.
3M™, 7010398240, Block Fork, Insulated, Insulated Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.03 in Length, Butted Barrel, 0.135 in ID x 0.25 in L Barrel, 600 to 1000 VAC, -40 to 221 deg F, ETP Copper/Vinyl, Yellow, 0.32 in W x 0.04 in THK Dimensions
| Barrel Size | : | 0.135 in ID x 0.25 in L |
| Barrel Type | : | Butted |
| Color | : | Yellow |
| Conductor Size | : | 12 to 10 AWG |
| Conductor Type | : | Insulated |
| Dimensions | : | 0.32 in W x 0.04 in THK |
| Length | : | 1.03 in |
| Material | : | ETP Copper/Vinyl |
| Stud Size | : | #10 |
| Temperature Rating | : | -40 to 221 deg F |
| Type | : | Block |
| Voltage Rating | : | 600 to 1000 VAC |
- Crimp connection
- Vinyl insulated
- Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion
