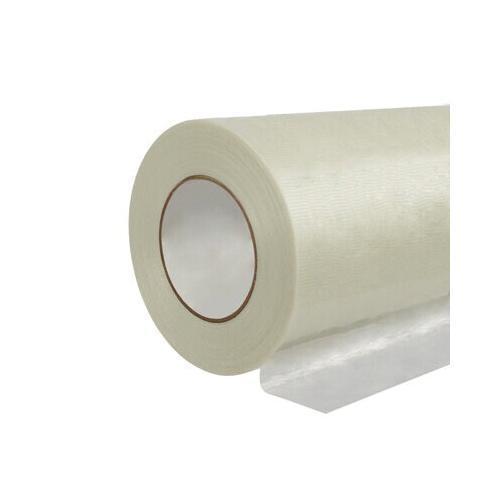

3M™ 7100002918 Filament Reinforced Electrical Tape, 60 yd L x 23 in W, 7 mil THK, Fiberglass, Acrylic Adhesive, Polyester Film Backing, White
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 434948
- MPN: 7100002918
- UPC: 051128595053
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: 1 RL/CS
-
Price:
- Add To Favorites
3M™ filament reinforced Electrical Tape 1039 is a 7 mil Thickness, solvent-resistant, electrical filament tape that has a polyester film/glass filament scrim backing and a chemical-resistant, acrylic adhesive. The tape is 600 V rated and withstands a temperature range of 40 to 266 deg F.
3M™, 7100002918, Electrical Tape, Filament Reinforced, 60 yd Length, 23 in Width, 7 mil Thickness, Fiberglass, White, Acrylic Adhesive, Polyester Film Backing, 35 in-oz Adhesion Strength, 600 V, 5500 V Dielectric Strength, 266 deg F Maximum Operating, -40 deg F Minimum Operating
| Adhesion Strength | : | 35 in-oz |
| Adhesive Material | : | Acrylic |
| Backing Material | : | Polyester Film |
| Color | : | White |
| Dielectric Strength | : | 5500 V |
| Length | : | 60 yd |
| Material Type | : | Fiberglass |
| Maximum Operating Temperature | : | 266 deg F |
| Minimum Operating Temperature | : | -40 deg F |
| Thickness | : | 7 mil |
| Type | : | Filament Reinforced |
| Voltage Rating | : | 600 V |
| Width | : | 23 in |
- Offers a strong backing
- An excellent choice for use in dry-type transformer and motor winding applications
- Chemically-resistant
- Pressure sensitive
- Woven, glass mat provides additional reinforcement
- Withstands a temperature range of -40 to 266 deg f (-40 to 130 deg c)
- Provides stiffness for excellent handling during coil-winding operations
