3M™ 7100003124 Flame-Retardant Electrical Connector, 12/10 AWG Wire Stranded Wire

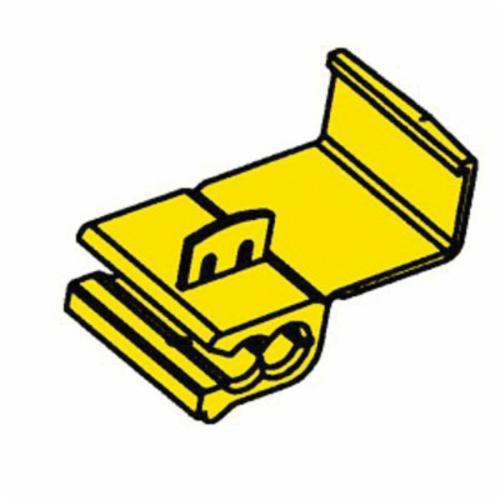

Use our 3M™ Scotchlok™ 562 IDC Double Run or Tap Electrical Connectors when you need to establish insulated electrical connections between wire ends (tap) and through (run) wires. Identifying the required wire size is easy thanks to the color-coding of this yellow connector, which can be used with 12 AWG wires and 10 AWG stranded wires. The insulation is constructed from polypropylene, while the u-contact is made from tin-plated brass for durability. Use this item with the E-9BM Crimping Tool, which has powerful metal jaws for efficient performance. Extreme heat isnt a problem with this connector because its suitable for use in temperatures upto 194 deg F (90 deg C). Our connectors are UL approved and RoHS 2011/65/EU compliant for quality assurance.

CASE OF 1000 3M 7100003124 SCOTCHLOK ELECTRICAL IDC 562-BIN YELLOW 12 AWG (SOLID/STRANDED) 10 AWG (STRANDED)

• Use to electrically connect a wire end (tap) to a through (run) wire and insulate the connection
• Rated for 32v applications
• Accommodates 18 to 14 awg solid/stranded

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4c5ee8f47c7c92ed5bc1e6978c9bd124b8aeb9a8b7eb8ad56363607e5b63365e.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8c1d8af1e79a2e2b59f393aaf6b3a3a9454792f0a063fb63cf74c8959886d843.pdf
