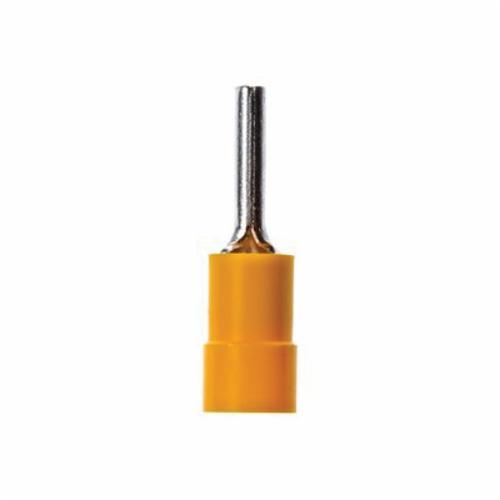

3M™ 7100055061 Butted Seam Barrel Insulated Pin, 12 to 10 AWG Conductor, 1/4 in Dia Pin x 0.55 in L Pin, Copper, Yellow
- Manufacturer: 3M
- Brand Name: 3M™
- Part#: 437694
- MPN: 7100055061
- UPC: 051128588635
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: EACH
-
Price:
- Add To Favorites
3M™ Scotchlok™ pin terminal is color coded for quick and easy identification of the wire size required. It has a butted seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl sleeve insulation ensures easy crimping.
3M™, 7100055061, Insulated Pin, Butted Seam Barrel, 12 to 10 AWG Conductor, 1/4 in Pin Diameter, 0.55 in Pin Length, 600 to 1000 VAC, Specifications: 1/4 in OD Barrel, Copper, 167 deg F, 1.06 in Overall Length, Yellow
| Color | : | Yellow |
| Conductor Size | : | 12 to 10 AWG |
| Material | : | Copper |
| Overall Length | : | 1.06 in |
| Pin Diameter | : | 1/4 in |
| Pin Length | : | 0.55 in |
| Specifications | : | 1/4 in OD Barrel |
| Temperature Rating | : | 167 deg F |
| Type | : | Butted Seam Barrel |
| Voltage Rating | : | 600 to 1000 VAC |
- Provides quick connection for set screws or clamps that are used to make electrical contact
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Made of copper for good conductivity and has tin plating for corrosion resistance
- Withstands a maximum temperature of 167 deg f (75 deg c)
