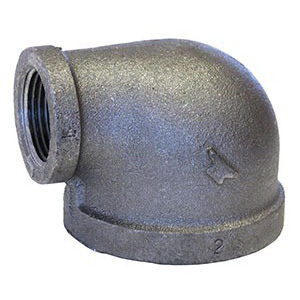

90 deg Pipe Reducing Elbow, 1-1/2 x 1 in Nominal, FNPT End Style, 150 lb, Malleable Iron, Galvanized, Domestic

90 deg Pipe Reducing Elbow, 1-1/2 x 1 in Nominal, FNPT End Style, 150 lb, Malleable Iron, Galvanized, Domestic

  • Manufacturer: Approved Vendor
  • Brand Name: Approved Vendor
  • Part#: 2084
  • MPN: 0311009807
  • UPC: 690291346729
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

We offer the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet our strict quality standards. All Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).

Pipe Reducing Elbow, Series: FIG 1101R, Fitting/Connector Type: 90 deg Elbow, 1-1/2 x 1 in Nominal, FNPT, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Galvanized, -20 to 150 deg F, Domestic

Domestic/Import      :      Domestic
End Style      :      FNPT
Finish      :      Galvanized
Fitting/Connector Type      :      90 deg Elbow
Material      :      Malleable Iron
Nominal Size      :      1-1/2 x 1 in
Pressure Class      :      150 lb
Pressure Rating      :      300 psi
Schedule Rating      :      SCH 40/STD
Series      :      FIG 1101R
Temperature Rating      :      -20 to 150 deg F
1 1/2 X 1 STD GALVANIZED RED 90 ELL DOM
