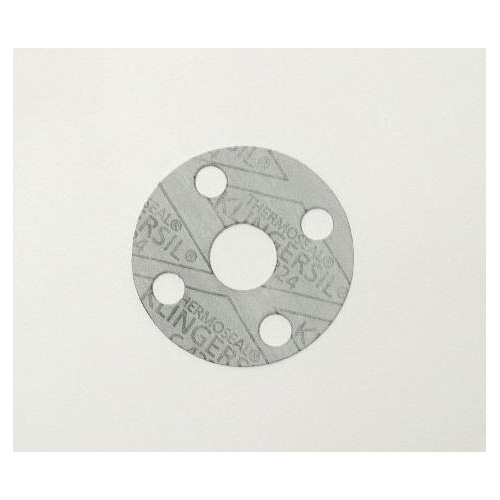

APG 13870FF062A0125FC Full Face Compressed Flange Gasket, C4324 Fiberglass/Aramid Blend, 1-1/4 in Nominal, 4-5/8 in OD x 1/16 in THK, Class 150 Class, Domestic

APG 13870FF062A0125FC Full Face Compressed Flange Gasket, C4324 Fiberglass/Aramid Blend, 1-1/4 in Nominal, 4-5/8 in OD x 1/16 in THK, Class 150 Class, Domestic

  • Manufacturer: APG
  • Brand Name: APG
  • Part#: 6594
  • MPN: 13870FF062A0125FC
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

APG Compressed Flange Gasket, Full Face, 1-1/4 in Nominal, 1-21/32 in Inside Dia, 4-5/8 in Outside Dia, 1/16 in Thickness, 4 Bolt Holes, 5/8 in, Class: Class 150, C4324 Fiberglass/Aramid Blend, Domestic

Bolt Hole Size      :      5/8 in
Class      :      Class 150
Domestic/Import      :      Domestic
Inside Diameter      :      1-21/32 in
Material      :      C4324 Fiberglass/Aramid Blend
Nominal Size      :      1-1/4 in
Number of Bolt Holes      :      4
Outside Diameter      :      4-5/8 in
Thickness      :      1/16 in
Type      :      Full Face
  • Nitrile binder
  • Low pressure steam, water and gases
  • Good for oils and fuels
  • 1500 psi typical tensile strength (ASTM F152 Cross Grain)
  • 3-1/2 in bolt hole center
  • Change in tensile strength 30% maximum decrease (ASTM F152)
  • Recycled fiberglass and aramid blend
