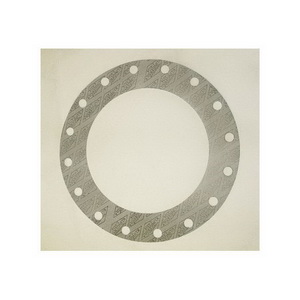

APG 13870FF062A1800FC C4324 Full Face Gasket, Recycled Fiberglass/Aramid Blend/Non-Asbestos, 18 in Nominal, 25 in OD x 1/16 in THK, Class 150, Domestic
- Manufacturer: APG
- Brand Name: APG
- Part#: 6601
- MPN: 13870FF062A1800FC
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
APG Gasket, Full Face, Series: C4324, 18 in Nominal, 18 in Inside Dia, 25 in Outside Dia, 1/16 in Thickness, 16 Bolt Holes, 1-1/4 in, Class: Class 150, Recycled Fiberglass/Aramid Blend/Non-Asbestos, Domestic
| Bolt Hole Size | : | 1-1/4 in |
| Class | : | Class 150 |
| Domestic/Import | : | Domestic |
| Inside Diameter | : | 18 in |
| Material | : | Recycled Fiberglass/Aramid Blend/Non-Asbestos |
| Nominal Size | : | 18 in |
| Number of Bolt Holes | : | 16 |
| Outside Diameter | : | 25 in |
| Series | : | C4324 |
| Thickness | : | 1/16 in |
| Type | : | Full Face |
- Recycled fiberglass and aramid blend, nitrile binder, low pressure steam, water and gases and good for oils and fuels
- Change in tensile strength 30% maximum decrease
- ASTM F104 line call out F71212B3E12M5
- 22-3/4 in bolt hole circle
- 1500 psi typical tensile strength
