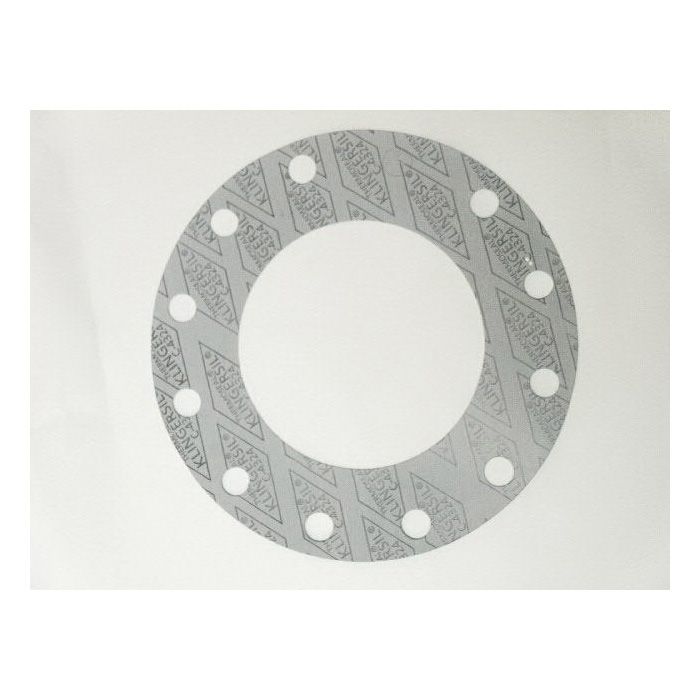

APG 13870FF062B0600 Full Face Compressed Flange Gasket, C4324 Fiberglass/Aramid Blend, 6 in Nominal, 12-1/2 in OD x 1/16 in THK, Class 300 Class, Domestic
- Manufacturer: APG
- Brand Name: APG
- Part#: 6619
- MPN: 13870FF062B0600
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
APG Compressed Flange Gasket, Full Face, 6 in Nominal, 6-5/8 in Inside Dia, 12-1/2 in Outside Dia, 1/16 in Thickness, 12 Bolt Holes, 7/8 in, Class: Class 300, C4324 Fiberglass/Aramid Blend, Domestic
| Bolt Hole Size | : | 7/8 in |
| Class | : | Class 300 |
| Domestic/Import | : | Domestic |
| Inside Diameter | : | 6-5/8 in |
| Material | : | C4324 Fiberglass/Aramid Blend |
| Nominal Size | : | 6 in |
| Number of Bolt Holes | : | 12 |
| Outside Diameter | : | 12-1/2 in |
| Thickness | : | 1/16 in |
| Type | : | Full Face |
- Nitrile binder
- Low pressure steam, water and gases
- Good for oils and fuels
- 1500 psi typical tensile strength (ASTM F152 Cross Grain)
- 10-5/8 in bolt hole center
- Change in tensile strength 30% maximum decrease (ASTM F152)
- Recycled fiberglass and aramid blend
