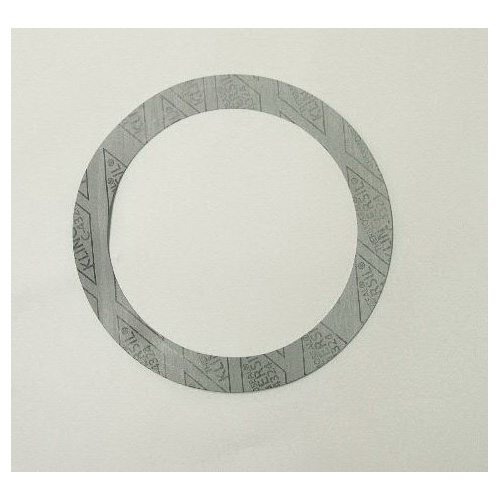

APG 13870RF125B1200FC Raised Face Compressed Flange Gasket, C4324 Fiberglass/Aramid Blend, 12 in Nominal, 16-5/8 in OD x 1/8 in THK, Class 300 Class, Domestic
- Manufacturer: APG
- Brand Name: APG
- Part#: 119474
- MPN: 13870RF125B1200FC
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
APG Compressed Flange Gasket, Raised Face, 12 in Nominal, 12-3/4 in Inside Dia, 16-5/8 in Outside Dia, 1/8 in Thickness, Class: Class 300, C4324 Fiberglass/Aramid Blend, Domestic
| Class | : | Class 300 |
| Domestic/Import | : | Domestic |
| Inside Diameter | : | 12-3/4 in |
| Material | : | C4324 Fiberglass/Aramid Blend |
| Nominal Size | : | 12 in |
| Outside Diameter | : | 16-5/8 in |
| Thickness | : | 1/8 in |
| Type | : | Raised Face |
- Nitrile binder
- Low pressure steam, water and gases
- Good for oils and fuels
- 1500 psi typical tensile strength (ASTM F152 Cross Grain)
- Change in tensile strength 30% maximum decrease (ASTM F152)
- Recycled fiberglass and aramid blend
