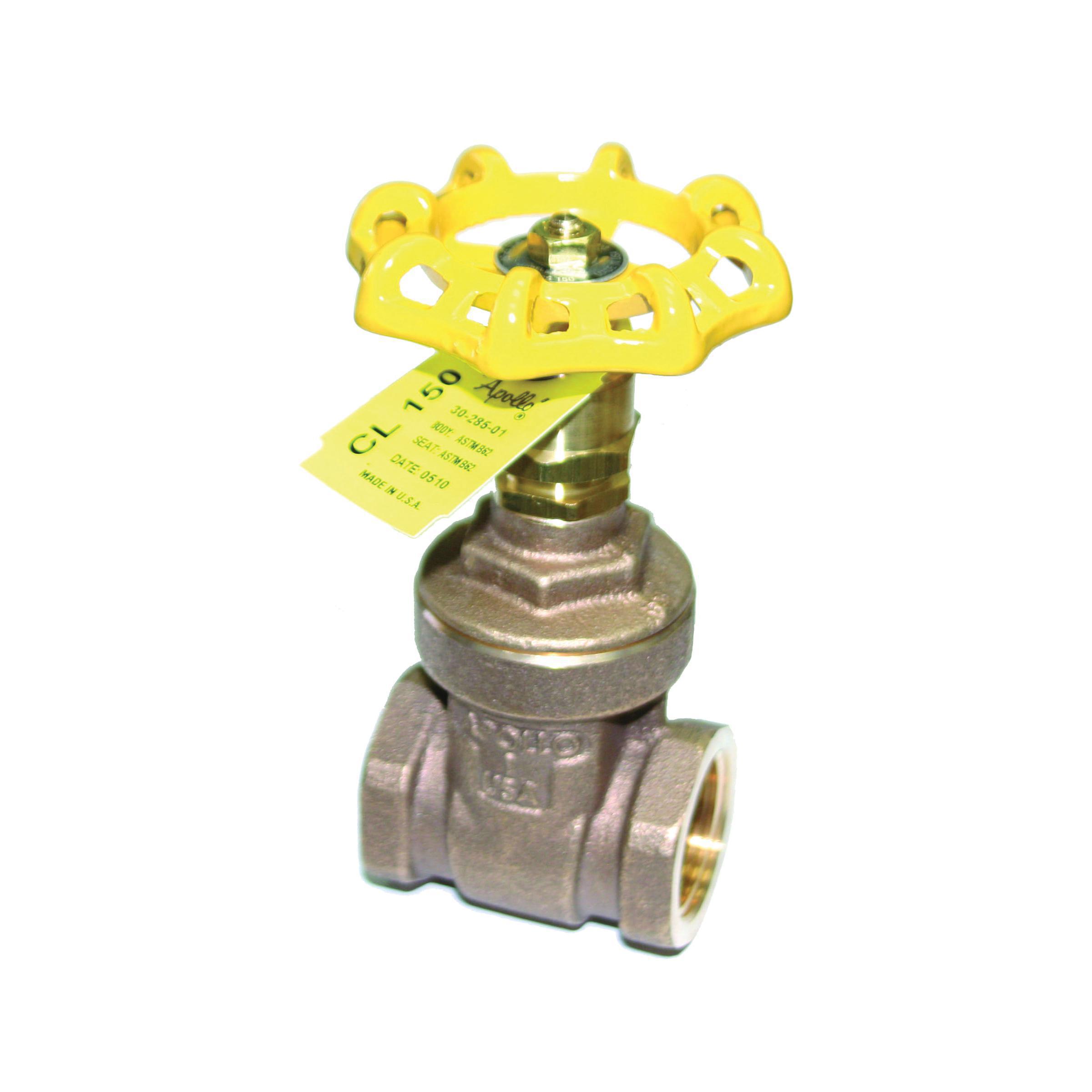

Apollo™ 3028301 30 Series Non Rising Stem Gate Valve, 1/2 in Nominal, NPT End Style, 150 lb, Bronze Body, Handwheel Actuator, Domestic
- Manufacturer: Apollo Conbraco
- Brand Name: Apollo™
- Part#: 113146
- MPN: 3028301
- UPC: 670750613364
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
The Apollo™ model 106T (30 Series) gate valve provides a cost effective made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled and tested in South Carolina. The Apollo™ gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.
Apollo™ Gate Valve, Non Rising Stem, Series: 30 Series, 1/2 in Nominal, NPT End Style, 150/300 psi Pressure, 150 lb Pressure Class, -20 to 406 deg F, 12.5 gpm Flow Rate, Handwheel Actuator, Bronze Body, Bronze Disc Wedge Trim, Grafoil® Packing Softgoods, 2.03 in L x 3.56 in H Dimensions, Domestic
| Actuator Type | : | Handwheel |
| Body Material | : | Bronze |
| Dimensions | : | 3.56 in H x 2.03 in L |
| Domestic/Import | : | Domestic |
| End Style | : | NPT |
| Flow Rate | : | 12.5 gpm |
| Nominal Size | : | 1/2 in |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 300 psi CWP |
| Series | : | 106T |
| Softgoods Material | : | Grafoil |
| Temperature Rating | : | -20 to 406 deg F |
| Trim Material | : | Bronze Disc Wedge |
| Type | : | Non-Rising Stem |
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Dezincification resistant
- 100% factory tested
- Malleable iron rugged hand wheel
Owners/User Manual
