Apollo™ 70204HC 70-200-HC 2-Piece Ball Valve, 3/4 in Nominal, Solder End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic
- Manufacturer: Apollo Conbraco
- Brand Name: Apollo™
- Part#: 112130
- MPN: 70204HC
- UPC: 670750521836
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites

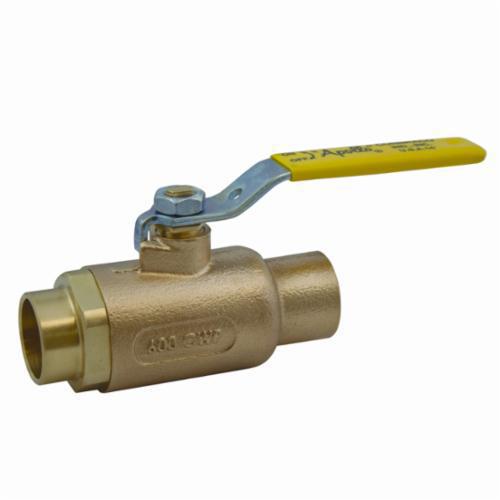

The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-200 model is a 2-piece standard port ball valve designed to be soft soldered into lines without disassembly. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
Apollo™ Ball Valve, 2-Piece, Series: 70-200-HC, 3/4 in Nominal, Solder, 600 psig CWP, 500 deg F, Standard Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 3.87 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, MPTFE, Domestic
| Actuator Type | : | Lever Handle |
| Ball Material | : | Chrome Plated Brass |
| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | Solder |
| Inlet to Outlet Length | : | 3.87 in |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Port Type | : | Standard |
| Pressure Rating | : | 600 psi CWP |
| Series | : | 70-200-HC |
| Softgoods Material | : | MPTFE |
| Temperature Rating | : | 210 deg F |
| Top to Inlet Center | : | 2.12 in |
| Trim Material | : | RPTFE /Brass |
| Type | : | 2-Piece |
- Premium materials and heavy duty construction
- EZ-Solder™ bronze
- Adjustable stem packing gland
- Blow-out proof stem
- 100% factory tested
- Vacuum service to 29 in Hg
- Steel, zinc plated with vinyl lever and grip
- ASTM B16 brass retainer
- ASTM B16 brass gland nut
- Steel, zinc plated lever nut

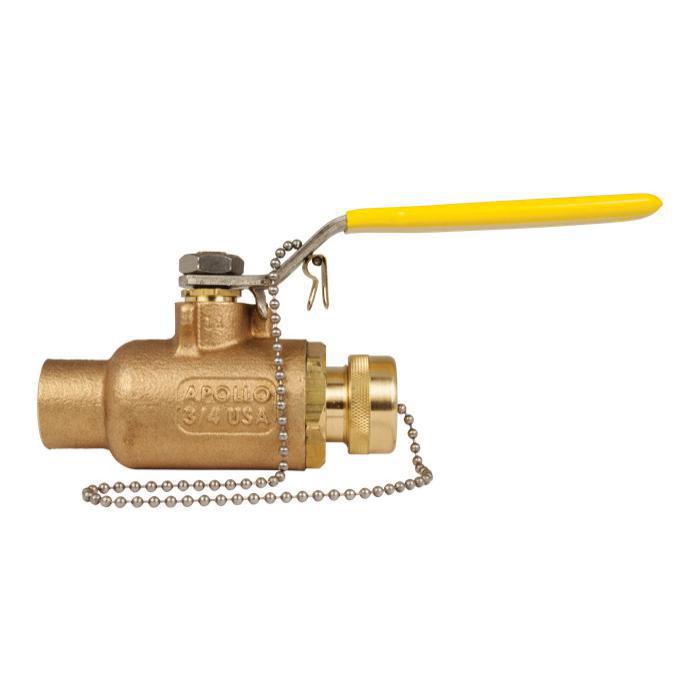

- Hose cap and chain with stainless steel lever and nut
- 150 psig saturated steam
- MPTFE stem packing
