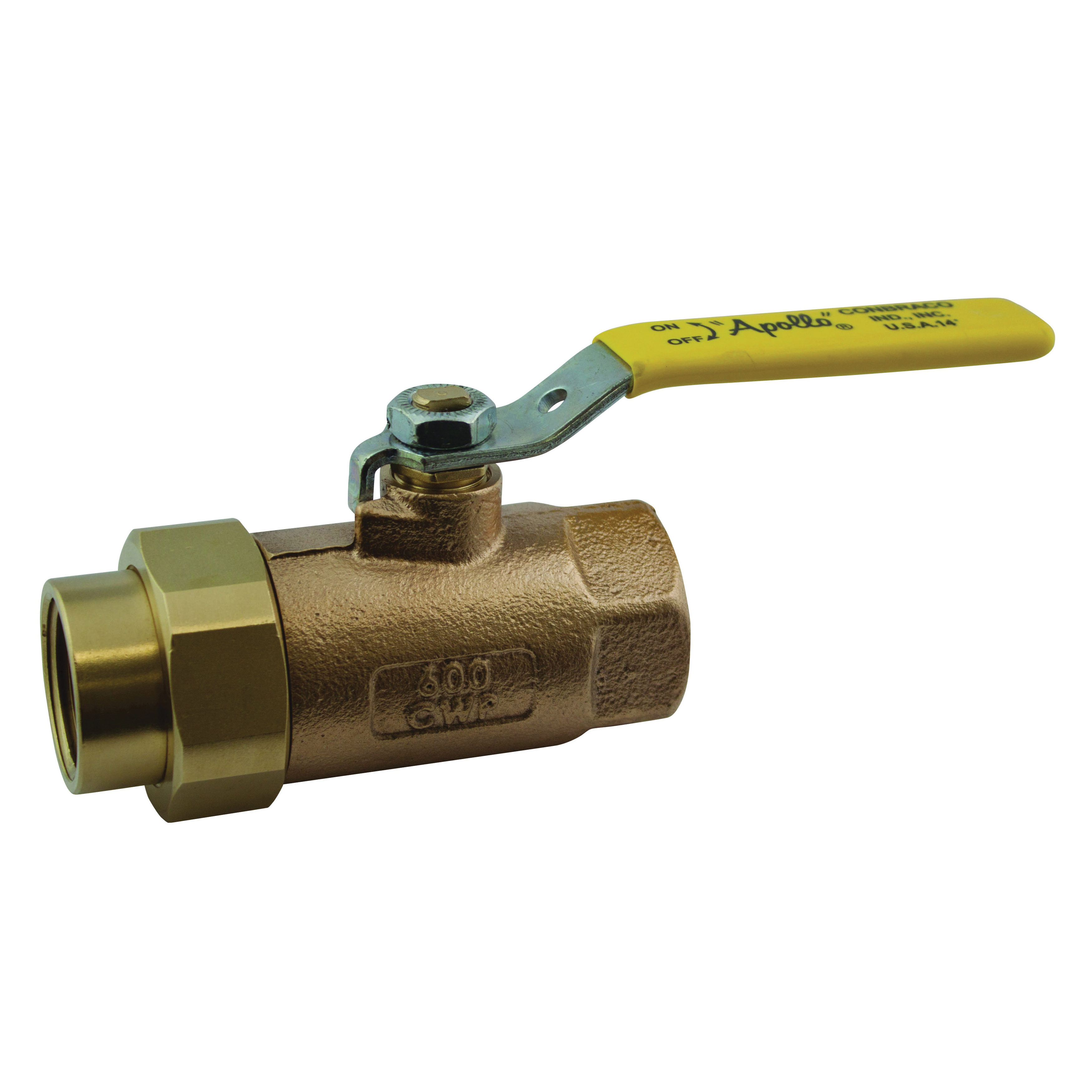

Apollo™ 7030527 70-300 Single Union Ball Valve, 1 in Nominal, FNPT x Union End End Style, Bronze Body, Standard Port, Fluorocarbon/RPTFE Softgoods, Domestic
- Manufacturer: Apollo Conbraco
- Brand Name: Apollo™
- Part#: 57758
- MPN: 7030527
- UPC: 670750669958
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
The Apollo™ 70-300 Series is a standard port ball valve that combines pipe union with ball valve shut-off.
Apollo™ Single Union Ball Valve, Series: 70-300, 1 in Nominal, FNPT x Union End, 600 psig CWP, 500 deg F, Standard Port, Latch-Lock Lever Actuator, Chrome Plated Brass Ball, 4.46 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, Fluorocarbon/RPTFE, Domestic
| Actuator Type | : | Latch-Lock Lever |
| Ball Material | : | Chrome Plated Brass |
| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT x Union End |
| Inlet to Outlet Length | : | 4.46 in |
| Media | : | Gas/Water |
| Nominal Size | : | 1 in |
| Orifice Size | : | 0.87 in |
| Port Type | : | Standard |
| Pressure Rating | : | 600 psi CWP |
| Series | : | 70-300 |
| Softgoods Material | : | Fluorocarbon/RPTFE |
| Temperature Rating | : | 500 deg F |
| Top to Inlet Center | : | 2-1/4 in |
| Trim Material | : | Brass Stem and PTFE Seat |
- 27 - Stainless steel latch-lock lever and nut
- Blow-out proof stem
- Fluorocarbon O-Ring sealed single union requires only light torque to seal
- Vacuum service to 29 in Hg
- Cold non-shock
- 150 psig Saturated Steam
- Reinforced seats
- Fluorocarbon union seal and RPTFE stem packing
