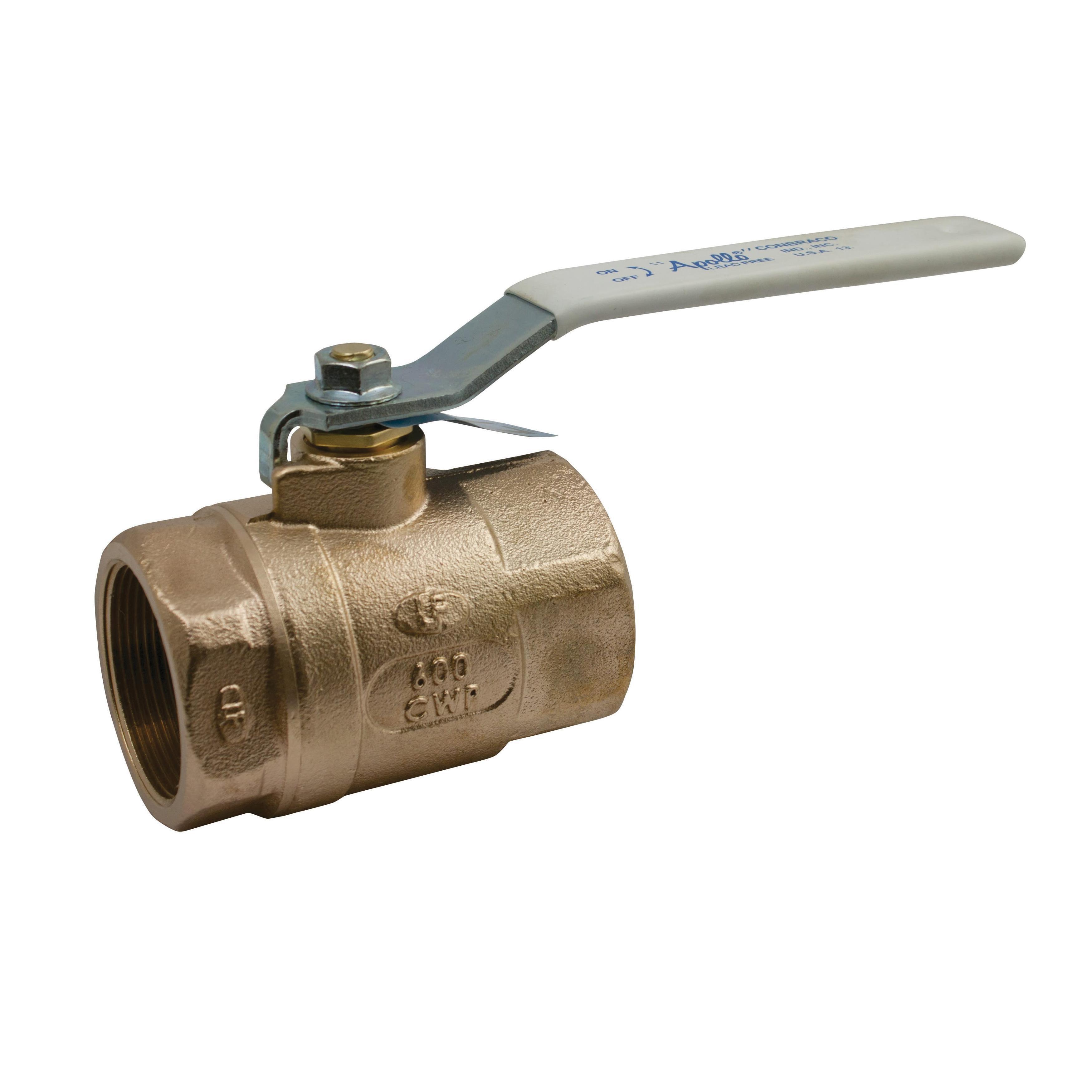

Apollo™ 70LF10001 70LF-100 2-Piece Ball Valve, 3 in Nominal, FNPT End Style, Lead Free Bronze Body, Standard Port, RPTFE Softgoods, Domestic
- Manufacturer: Apollo Conbraco
- Brand Name: Apollo™
- Part#: 256860
- MPN: 70LF10001
- UPC: 670750511516
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
The Apollo™ 70LF Series has the same rugged features as the industry standard 70 Series valves with the added advantage of Lead Free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo™ performance with a wide range of popular options.
Apollo™ Ball Valve, 2-Piece, Series: 70LF-100, 3 in Nominal, FNPT, 600 psig CWP, 450 deg F, Standard Port, Media: Water, Lever Operated Actuator, Chrome Plated Brass Ball, 6-3/4 in Inlet to Outlet Length, 4.12 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem and RPTFE Seat Trim, RPTFE, Domestic
| Actuator Type | : | Lever Operated |
| Ball Material | : | Chrome Plated Brass |
| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 6-3/4 in |
| Media | : | Gas/Water |
| Nominal Size | : | 3 in |
| Orifice Size | : | 2-1/2 in |
| Port Type | : | Regular |
| Pressure Rating | : | 600 psi CWP |
| Series | : | 70LF-100 |
| Softgoods Material | : | RPTFE |
| Temperature Rating | : | 350 deg F |
| Top to Inlet Center | : | 4.12 in |
| Trim Material | : | Brass Stem and RPTFE Seat |
| Type | : | 2-Piece |
- Easily identifiable blue Lead free hang tag
- RPTFE seats and stuffing box ring
- 100% factory tested
- Vacuum service to 29 in Hg
- Steel, zinc plated with vinyl lever and grip
- UNS C89836 Lead free bronze retainer
- ASTM B16 brass gland nut
- Steel, zinc plated lever nut
- Complies with Federal Public law 111-380, ANSI 3Rd Party approved and listed
- 150 psig steam working pressure
- RPTFE stem packing
