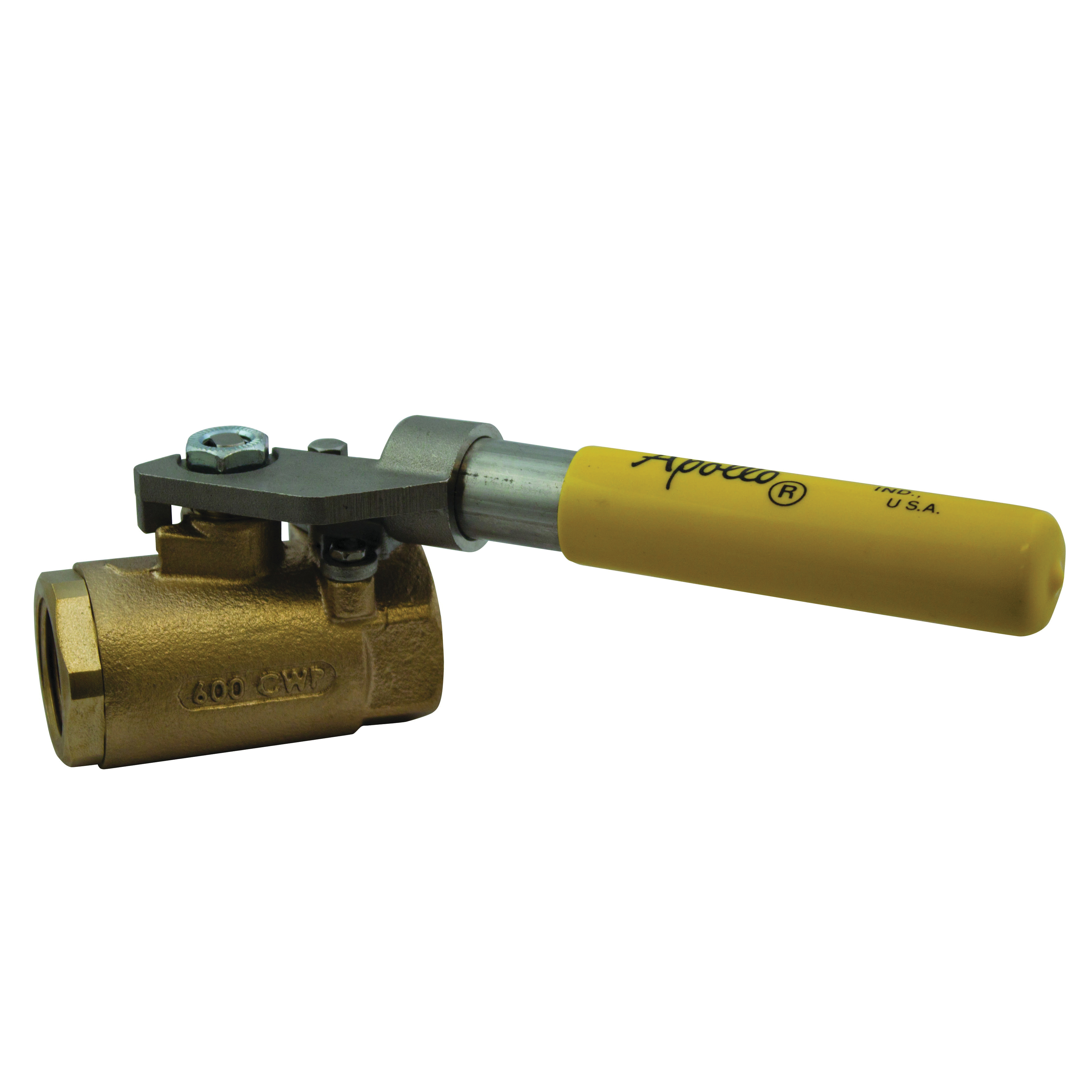

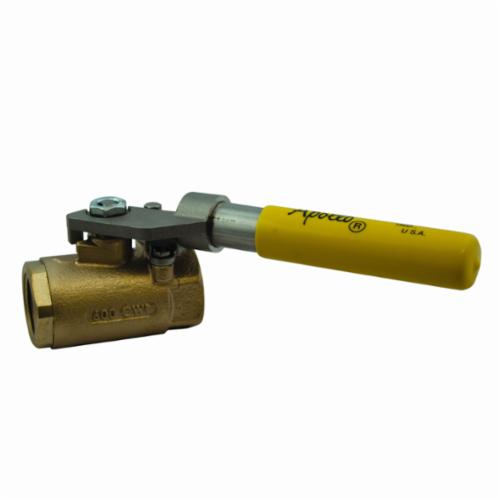

Apollo™ 7150808 71-500 71-500 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic
- Manufacturer: Apollo Conbraco
- Brand Name: Apollo™
- Part#: 283532
- MPN: 7150808
- UPC: 670750680144
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Apollo™ Ball Valve, 2-Piece, Series: 71-500, 2 in Nominal, FNPT End Style, 600 psig CWP Pressure, Standard Port, Spring Return Handle Actuator, Chrome Plated Brass Ball, 4.68 in Inlet to Outlet Length, Bronze Body, 316 Stainless Steel/PTFE Trim, PTFE Softgoods, Domestic
| Actuator Type | : | Spring Return Handle |
| Ball Material | : | Chrome Plated Brass |
| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 4.68 in |
| Media | : | Gas/Water |
| Nominal Size | : | 2 in |
| Orifice Size | : | 1-1/2 in |
| Port Type | : | Standard |
| Pressure Rating | : | 600 psi CWP |
| Series | : | 71-500 |
| Softgoods Material | : | PTFE |
| Top to Inlet Center | : | 9 in |
| Trim Material | : | 316 Stainless Steel/PTFE |
| Type | : | 2-Piece |
- 08 - 90 deg reversed stem
- All components of lever are stainless steel
- Operating torque is approximately three times standard valve torque
- Reinforced seat
- Blow-out proof stem design
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- Cold non-shock body rating
- Spring return to open
- PTFE seal/stem packing
Specification Sheet
