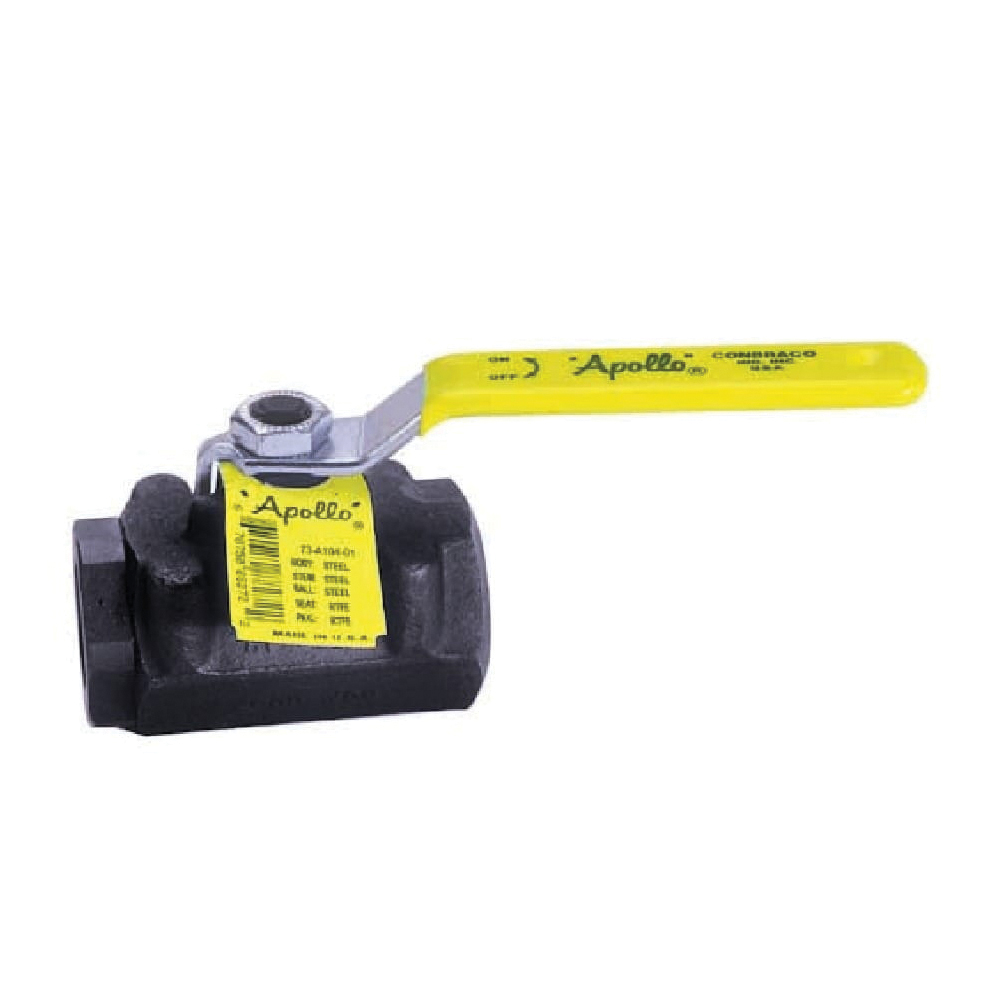

Apollo™ 73A-147-64 73A-140 Ball Valve, 1-1/2 in Nominal, FNPT End Style, 250 lb, Forged Carbon Steel Body, Standard Port, MTFE Softgoods, Domestic
- Manufacturer: Apollo Conbraco
- Brand Name: Apollo™
- Part#: 182430
- MPN: 73A-147-64
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Apollo™ Ball Valve, Series: 73A-140, 1-1/2 in Nominal, FNPT, 150 psi, 250 lb, -20 to 450 deg F, Standard Port, 1-1/4 in Orifice, Lever Operated Actuator, 316 Stainless Steel Ball, 4.32 in Inlet to Outlet Length, 3.12 in Top to Inlet Center, Forged Carbon Steel Body, 316 Stainless Steel Stem and RPTFE Seat Trim, MTFE, Domestic
| Actuator Type | : | Lever Operated |
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Forged Carbon Steel |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 4.32 in |
| Nominal Size | : | 1-1/2 in |
| Orifice Size | : | 1-1/4 in |
| Port Type | : | Standard |
| Pressure Class | : | 250 lb |
| Pressure Rating | : | 150 psi |
| Series | : | 73A-140 |
| Softgoods Material | : | MTFE |
| Temperature Rating | : | -20 to 450 deg F |
| Top to Inlet Center | : | 3.12 in |
| Trim Material | : | 316 Stainless Steel Stem and RPTFE Seat |
- Raised handle stops
- Blow-out proof stem
- Zinc phosphate corrosion protection
- MTFE stem packing and body seal
