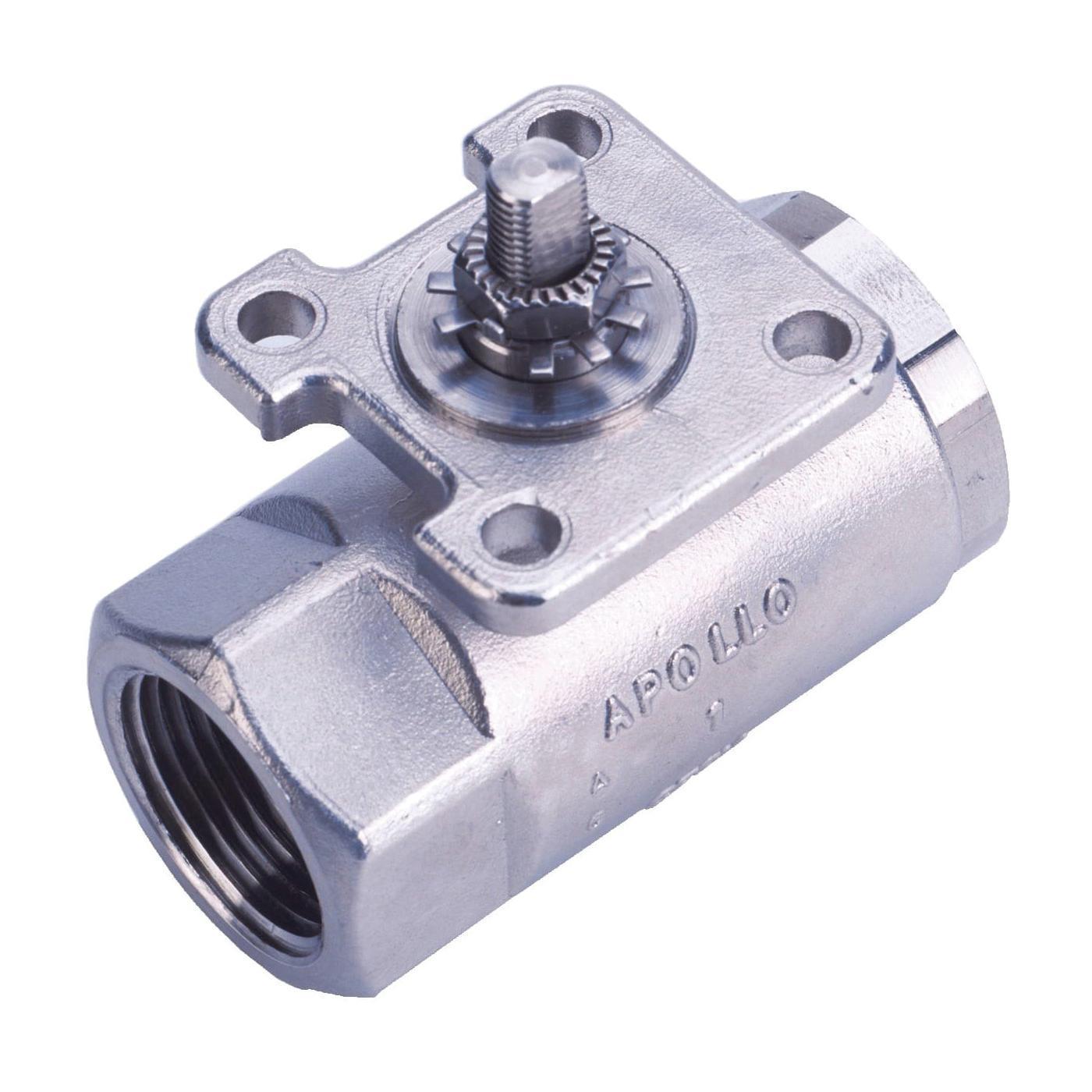

Apollo™ 76AR164 76-AR 76-AR 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Stainless Steel Body, Standard Port
- Manufacturer: Apollo Conbraco
- Brand Name: Apollo™
- Part#: 101243
- MPN: 76AR164
- UPC: 670750873942
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Apollo™ Ball Valve, 2-Piece, Series: 76-AR, 1/4 in Nominal, FNPT End Style, 2000 psig CWP/250 psig SWP Pressure, Standard Port, Stainless Steel Ball, 2.04 in Inlet to Outlet Length, 1.4 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/MPTFE Trim, MPTFE/PTFE Softgoods, Domestic
| Ball Material | : | Stainless Steel |
| Body Material | : | Stainless Steel |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 2.04 in |
| Nominal Size | : | 1/4 in |
| Port Type | : | Standard |
| Pressure Rating | : | 2000 psi CWP |
| Series | : | 76-AR |
| Softgoods Material | : | MPTFE/PTFE |
| Top to Inlet Center | : | 1.4 in |
| Trim Material | : | 316 Stainless Steel/MPTFE |
| Type | : | 2-Piece |
- 64 - 250 lb SWP
- Multi-piece packing set
- ISO 5211 mounting pad
- Blow-out proof stem design
- Live loaded packing
- Cold non-shock body rating
- Vacuum service to 29 in Hg
- 250 psi saturated steam pressure
- PTFE seal and MPTFE stem packing
Specification Sheet
