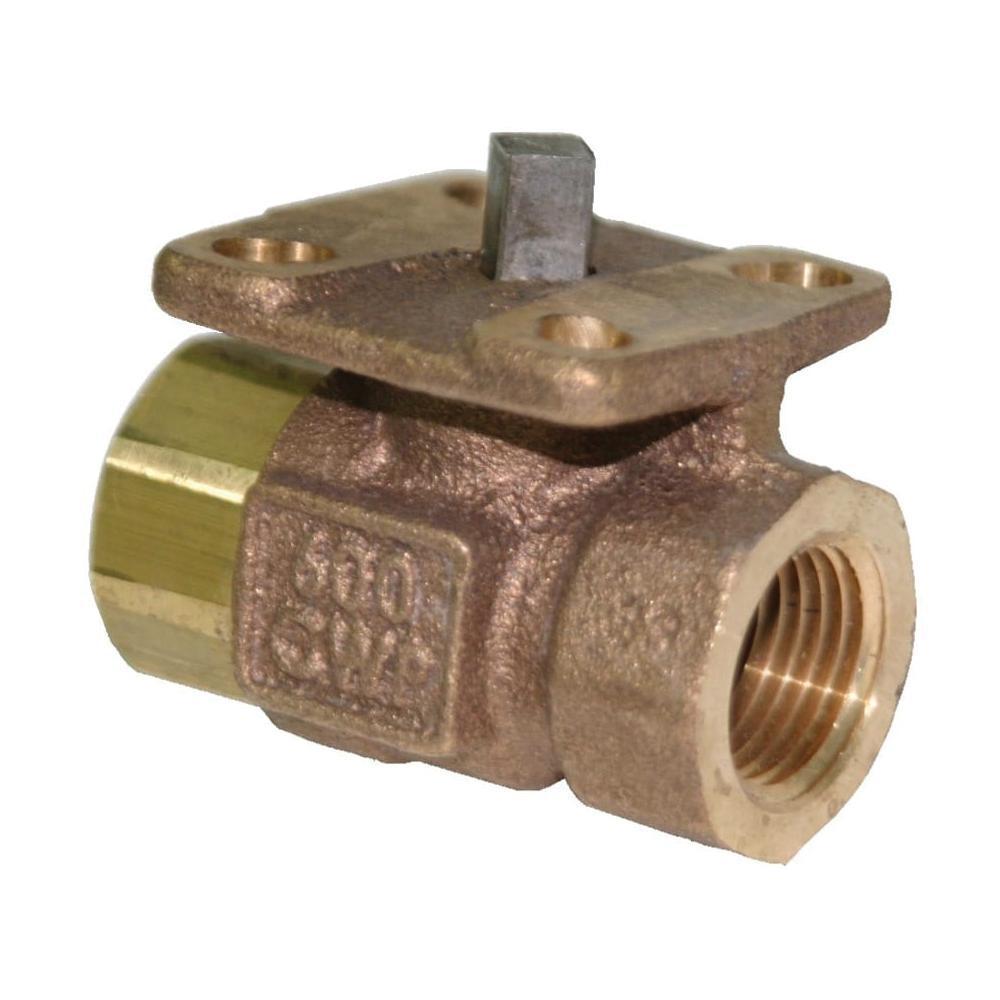

Apollo™ 77D14501E 77D 77D 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Full Port, EPDM Softgoods
- Manufacturer: Apollo Conbraco
- Brand Name: Apollo™
- Part#: 253410
- MPN: 77D14501E
- UPC: 670750056611
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Apollo™ Ball Valve, 2-Piece, Series: 77D, 1 in Nominal, FNPT End Style, 600 psi CWP/150 psi SWP Pressure, 366 deg F, Full Port, 316 Stainless Steel Ball, 3.07 in Inlet to Outlet Length, 2.2 in Top to Inlet Center, Bronze Body, 316 Stainless Steel/MPTFE Trim, EPDM Softgoods, Domestic
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Bronze |
| Domestic/Import | : | Domestic |
| End Style | : | FNPT |
| Inlet to Outlet Length | : | 3.07 in |
| Nominal Size | : | 1 in |
| Port Type | : | Full |
| Pressure Rating | : | 600 psi CWP |
| Series | : | 77D-140 |
| Softgoods Material | : | EPDM |
| Temperature Rating | : | 366 deg F |
| Top to Inlet Center | : | 2.2 in |
| Trim Material | : | 316 Stainless Steel/MPTFE |
| Type | : | 2-Piece |
- Blow-out proof stem design
- Stainless steel ball/stem
- MPTFE seats and bearing
- Dual O-ring stem seal
- Full port for full flow and minimum pressure drop
- Direct actuator mounting per ISO 5211
- Cold non-shock body rating
- Vacuum service to 29 in Hg
- Direct mount
- 316 stainless steel stem/MPTFE seat
- EPDM O-ring
