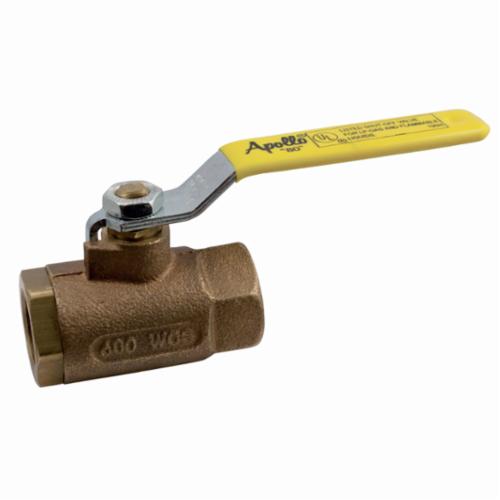

Apollo™ 8010101 80-100 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, RPTFE Softgoods, Domestic

Apollo™ 8010101 80-100 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, RPTFE Softgoods, Domestic

  • Manufacturer: Apollo Conbraco
  • Brand Name: Apollo™
  • Part#: 78630
  • MPN: 8010101
  • UPC: 670750719097
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Apollo™ 80 series bronze ball valve is UL Listed and designed as a safe shut-off valve for LP gas, natural gas, flammable liquids and heated oil.

Apollo™ Ball Valve, 2-Piece, Series: 80-100, 1/4 in Nominal, FNPT, 600 psig CWP, Standard Port, Media: LP Gas, Lever Operated Actuator, Chrome Plated Brass Ball, 2.06 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, RPTFE, Domestic

Actuator Type      :      Lever Operated
Ball Material      :      Chrome Plated Brass
Body Material      :      Bronze
Domestic/Import      :      Domestic
End Style      :      FNPT
Inlet to Outlet Length      :      2.06 in
Media      :      LP Gas
Nominal Size      :      1/4 in
Port Type      :      Standard
Pressure Rating      :      600 psig CWP
Series      :      80-100
Softgoods Material      :      RPTFE
Top to Inlet Center      :      1-3/4 in
Trim Material      :      Brass Stem and PTFE Seat
Type      :      2-Piece
  • 01 - Standard configuration
  • Blow-out proof stem
  • Chromium plated ball
  • Large ports to reduce pressure drop
  • Vacuum service to 29 in Hg
  • 150 psig saturated steam
  • 250 psi LP gas
  • Cold non-shock
  • RPTFE seal and stem packing
