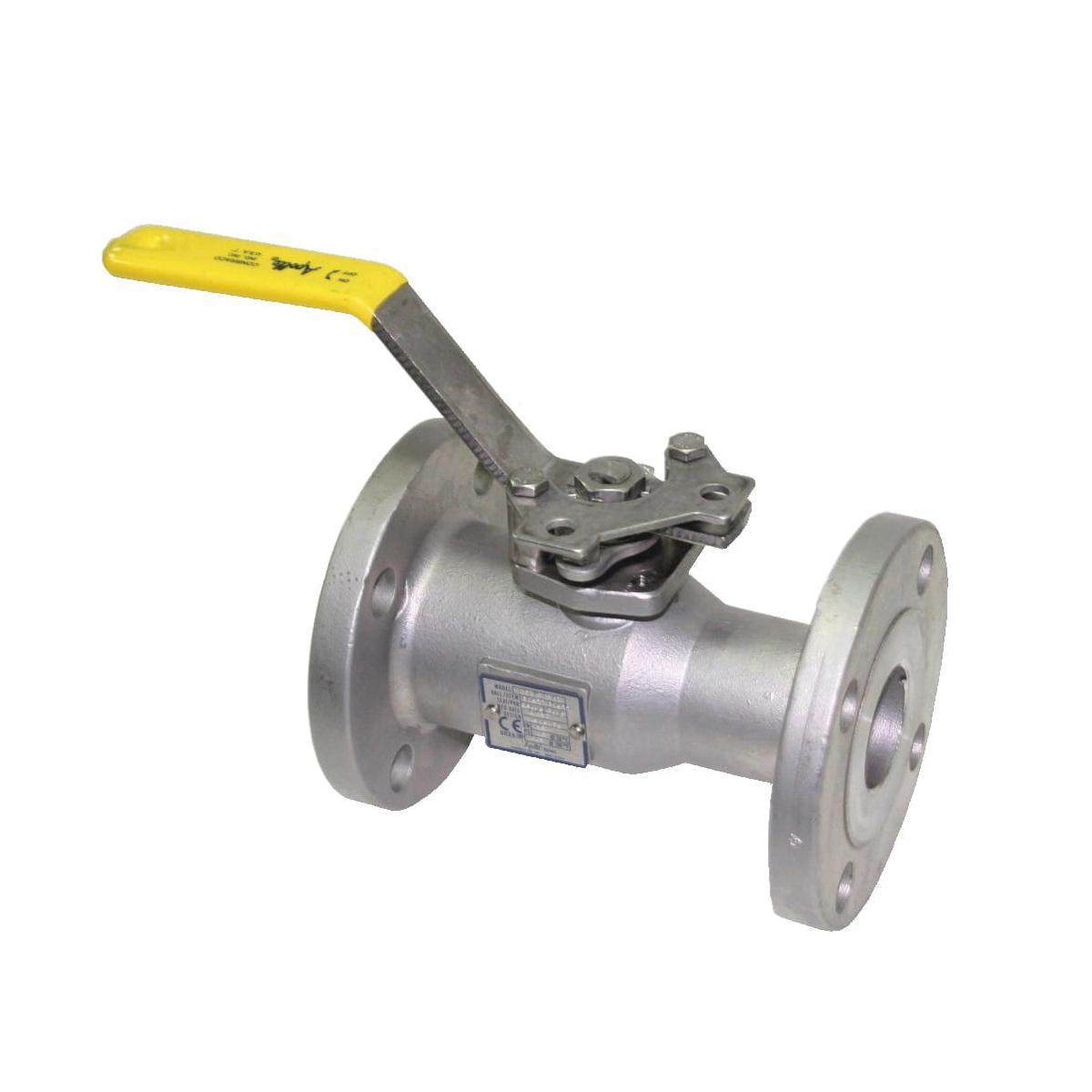

Apollo™ 87A10701A 87A-100 87A-100 Ball Valve, 1-1/2 in Nominal, Flanged End Style, 150 lb, Stainless Steel Body
- Manufacturer: Apollo Conbraco
- Brand Name: Apollo™
- Part#: 253495
- MPN: 87A10701A
- UPC: 670750400285
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Apollo™ Ball Valve, Series: 87A-100, 1-1/2 in Nominal, Flanged End Style, 250 psig Pressure, 150 lb Pressure Class, Standard Port, Lever Operated Actuator, 316 Stainless Steel Ball, 6-1/2 in Inlet to Outlet Length, 4.85 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, PTFE Softgoods
| Actuator Type | : | Lever Operated |
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Stainless Steel |
| Domestic/Import | : | Domestic |
| End Style | : | Flanged |
| Inlet to Outlet Length | : | 6-1/2 in |
| Nominal Size | : | 1-1/2 in |
| Port Type | : | Standard |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 150 psi |
| Series | : | 87A-100 |
| Softgoods Material | : | PTFE |
| Top to Inlet Center | : | 4.85 in |
| Trim Material | : | 316 Stainless Steel/PTFE |
- 2-position locking device (valves 6 in full port, 8 in standard port and smaller)
- Chevron style adjustable stem seal
- ISO 5211 mounting pad bolt pattern
- Slot vented ball for thermal expansion
- Anti-static grounded ball and stem
- Blow-out proof stem design
- Cast brass for bleed/drain port
- Vacuum service to 29 in Hg
- ASTM A351-CF8M body/retainer
- ASTM A276 type 316 or A351-CF8M ball
- ASTM A276 type 316 stem
- ASTM A193 B8 class 1 gland screws
- 316 stainless steel gland plate/handle adapter/stop screw
- 18-8 stainless steel adapter screw
- ASTM A276-316 stop
- 302 or 304 stainless steel lock plate/lock washer
- Stainless steel grounding spring
- ASTM A193 grade B8M body joint stud
- ASTM A194 grade 8 body joint nut, galvanized steel pipe handle
- PTFE seal
