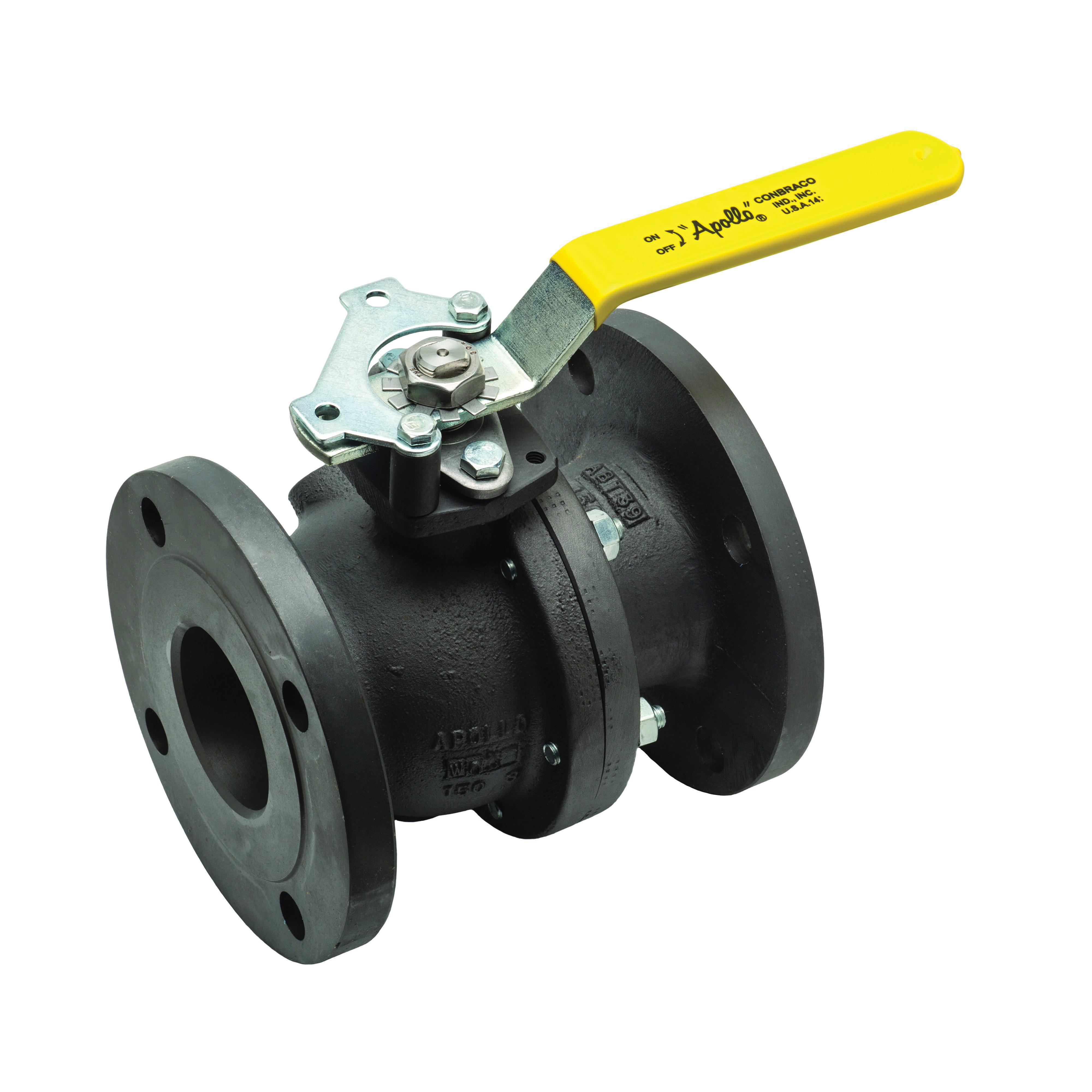

Apollo™ 88A10701A 88A-100 88A-100 Ball Valve, 1-1/2 in Nominal, Raised Face Flanged End Style, 150 lb, Carbon Steel Body
- Manufacturer: Apollo Conbraco
- Brand Name: Apollo™
- Part#: 11483
- MPN: 88A10701A
- UPC: 670750400292
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Apollo™ Ball Valve, Series: 88A-100, 1-1/2 in Nominal, Raised Face Flanged End Style, 250 psig Pressure, 150 lb Pressure Class, Standard Port, Lever Operated Actuator, Carbon Steel Ball, 6-1/2 in Inlet to Outlet Length, 4.85 in Top to Inlet Center, Carbon Steel Body, Carbon Steel/RPTFE Trim, PTFE Softgoods, Domestic
| Actuator Type | : | Lever Operated |
| Ball Material | : | Carbon Steel |
| Body Material | : | Carbon Steel |
| Domestic/Import | : | Domestic |
| End Style | : | Flanged |
| Inlet to Outlet Length | : | 6-1/2 in |
| Nominal Size | : | 1-1/2 in |
| Port Type | : | Standard |
| Pressure Class | : | 150 lb |
| Pressure Rating | : | 150 psi |
| Series | : | 88A-100 |
| Softgoods Material | : | PTFE |
| Top to Inlet Center | : | 4.85 in |
| Trim Material | : | Carbon Steel/RPTFE |
- 2-position locking device (valves 6 in full port, 8 in standard port and smaller)
- Chevron style adjustable stem seal
- ISO 5211 mounting pad bolt pattern
- Slot vented ball for thermal expansion
- Anti-static grounded ball and stem
- Blow-out proof stem design
- Cast brass for bleed/drain port
- Vacuum service to 29 in Hg
- ASTM A216-WCB body/retainer
- ASTM A216-WBC chrome plated ball
- ASTM A108 type 1215 stem packing gland
- 302 or 304 stainless steel gland plate
- ASTM A194 grade 8 stem nut
- ASTM A366 steel with vinyl grip lever
- ASTM A108 type 1215 stop
- SAE J429 grade 2 stop screw
- ASTM A366 steel lock plate
- Stainless steel grounding spring
- ASTM A193 grade B7 body joint stud, ASTM A194 grade 2H body joint nut, 302 or 304 stainless steel lock washer
- NACE MR0175 (2000)/NACE MR0103 (2003) compliance on all 87A/87B/88A/88B/88L valves with stainless steel ball and stem
