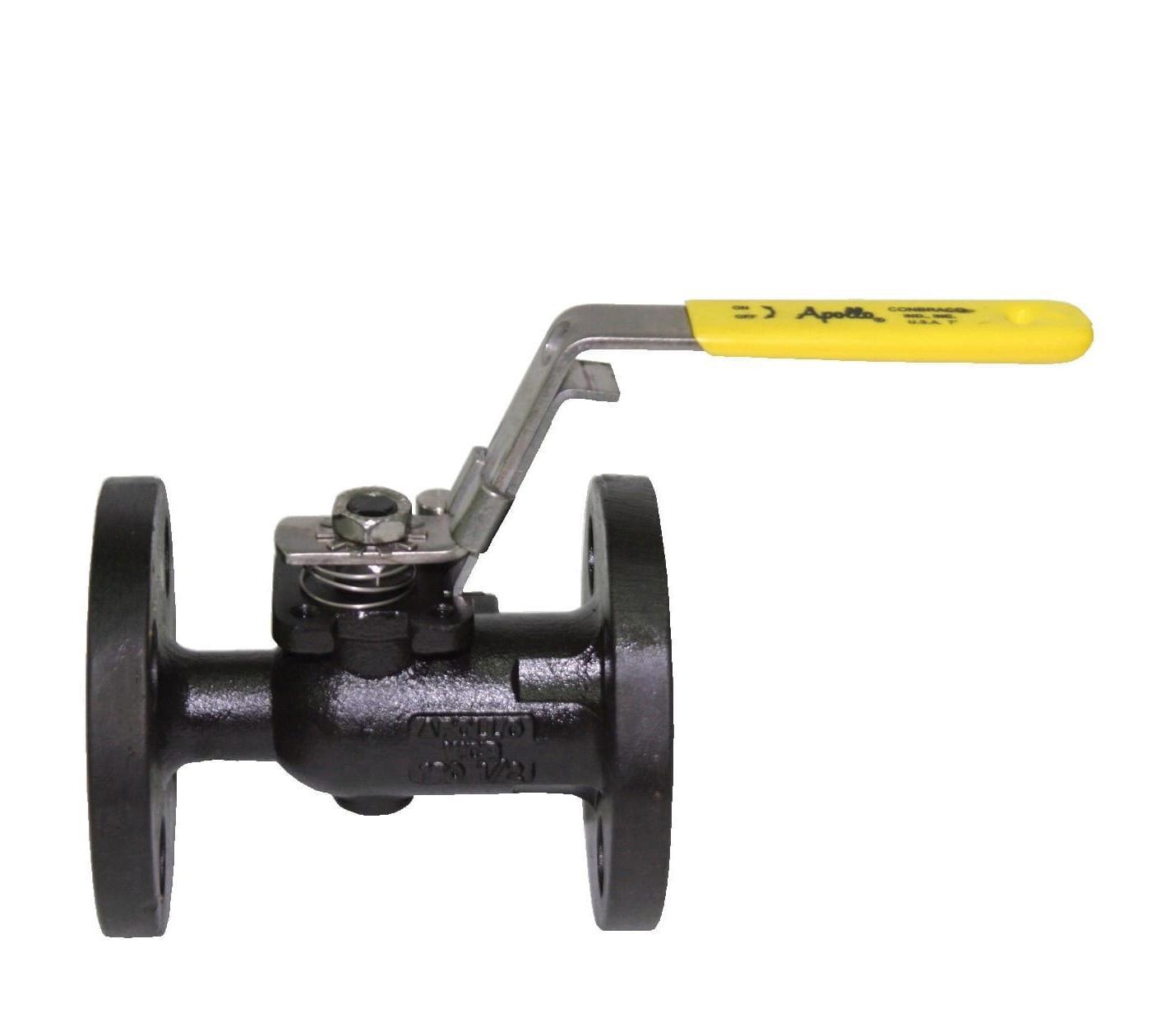

Apollo™ 88A20001 88A-200 88A-200 Ball Valve, 3 in Nominal, Raised Face Flanged End Style, 150 lb, Carbon Steel Body

Apollo™ 88A20001 88A-200 88A-200 Ball Valve, 3 in Nominal, Raised Face Flanged End Style, 150 lb, Carbon Steel Body

  • Manufacturer: Apollo Conbraco
  • Brand Name: Apollo™
  • Part#: 92056
  • MPN: 88A20001
  • UPC: 670750899904
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Apollo™ Ball Valve, Series: 88A-200, 3 in Nominal, Raised Face Flanged End Style, 250 psig Pressure, 150 lb Pressure Class, Full Port, Lever Operated Actuator, Carbon Steel Ball, 8 in Inlet to Outlet Length, 8.8 in Top to Inlet Center, Carbon Steel Body, Carbon Steel/RPTFE Trim, PTFE Softgoods, Domestic

Actuator Type      :      Lever Handle
Ball Material      :      Carbon Steel
Body Material      :      Carbon Steel
Domestic/Import      :      Domestic
End Style      :      Flanged
Inlet to Outlet Length      :      8 in
Nominal Size      :      3 in
Orifice Size      :      3 in
Port Type      :      Full
Pressure Class      :      150 lb
Pressure Rating      :      250 psi
Series      :      88A-200
Softgoods Material      :      PTFE
Top to Inlet Center      :      8.8 in
Trim Material      :      Carbon Steel/RPTFE
  • 2-position locking device (valves 6 in full port, 8 in standard port and smaller)
  • Chevron style adjustable stem seal
  • ISO 5211 mounting pad bolt pattern
  • Slot vented ball for thermal expansion
  • Anti-static grounded ball and stem
  • Blow-out proof stem design
  • Cast brass for bleed/drain port
  • Vacuum service to 29 in Hg
  • ASTM A216-WCB body/retainer
  • ASTM A216-WBC chrome plated ball
  • ASTM A108 type 1215 stem packing gland
  • 302 or 304 stainless steel gland plate
  • ASTM A194 grade 8 stem nut
  • ASTM A366 steel with vinyl grip lever
  • ASTM A108 type 1215 stop
  • SAE J429 grade 2 stop screw
  • ASTM A366 steel lock plate
  • Stainless steel grounding spring
  • ASTM A193 grade B7 body joint stud, ASTM A194 grade 2H body joint nut, 302 or 304 stainless steel lock washer
  • NACE MR0175 (2000)/NACE MR0103 (2003) compliance on all 87A/87B/88A/88B/88L valves with stainless steel ball and stem
  • pdfOwners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Apollo_88A20501_User_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Apollo_88A20501_Specification_Sheet.pdf
