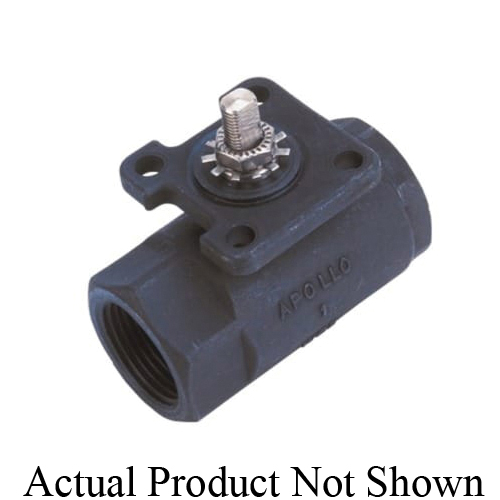

Apollo™ 89AR364 89-AR 89-AR 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Wrot Carbon Steel Body, Standard Port

Apollo™ 89AR364 89-AR 89-AR 2-Piece Ball Valve, 1/2 in Nominal, FNPT End Style, Wrot Carbon Steel Body, Standard Port

  • Manufacturer: Apollo Conbraco
  • Brand Name: Apollo™
  • Part#: 253411
  • MPN: 89AR364
  • UPC: 670750874291
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Apollo™ Ball Valve, 2-Piece, Series: 89-AR, 1/2 in Nominal, FNPT End Style, 2000 psig CWP Pressure, Standard Port, 316 Stainless Steel Ball, 2.23 in Inlet to Outlet Length, 1.54 in Top to Inlet Center, Wrot Carbon Steel Body, 316 Stainless Steel/MPTFE Trim, MPTFE/PTFE Softgoods, Domestic

Ball Material      :      316 Stainless Steel
Body Material      :      Wrought Carbon Steel
Domestic/Import      :      Domestic
End Style      :      FNPT
Inlet to Outlet Length      :      2.23 in
Nominal Size      :      1/2 in
Port Type      :      Standard
Pressure Rating      :      2000 psi CWP
Series      :      89-AR
Softgoods Material      :      MPTFE/PTFE
Top to Inlet Center      :      1.54 in
Trim Material      :      316 Stainless Steel/MPTFE
Type      :      2-Piece
  • 64 - 250 lb steam trim (MPTFE seats and packing) use with 316 stainless steel ball and stem variation
  • Multi-piece packing set
  • Blow-out proof stem design
  • Actuator ready ISO 5211 mounting pad
  • Live loaded packing
  • 250 psig saturated steam pressure
  • Cold non-shock body rating
  • Vacuum service to 29 in Hg
  • PTFE body seal and MPTFE packing
