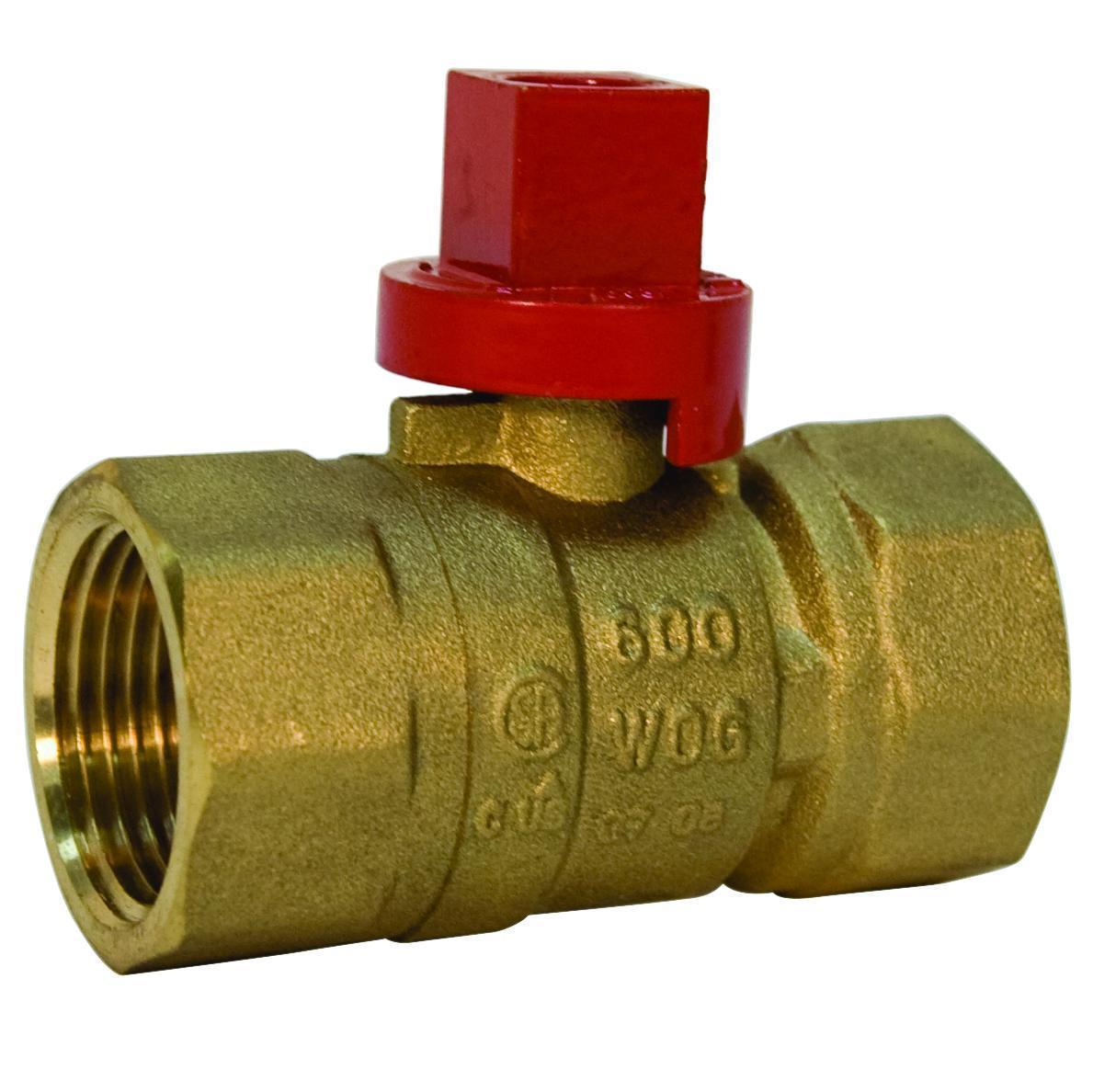

Ball Valve With 90 deg Inlet 1/2 in Nominal FNPT End Style Brass Body

The NIBCO® brass Ball Valve with square head operator provides ease of operation with quarter-turn (90 deg) open to close. The valve features threaded end connections for easy installation. Please refer to NIBCO® technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® Ball Valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO® INC. 2 years limited warranty.

NIBCO® Ball Valve, Series: GB-2A, 1/2 in Nominal, FNPT, 600 psi, Media: Gas, 0.47 in Orifice, Polished Chrome Brass Ball, 2.21 in Inlet to Outlet Length, 1.44 in Top to Inlet Center, Brass Body, Brass/RPTFE Trim, Import

• Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
• 1/2 psi for indoor appliance connections per ANSI Z21.15 and CSA 9.1
• 5 psi for indoor shutoff per CGA 91-002 and ASME B16.44
• Brass stem and RPTFE seat
