BALON® LM-07362 236748
  1. pin-int

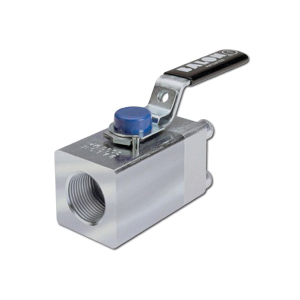

BALON® LM-07362 LM Series Floating Ball Valve, 3/4 in Nominal, Thread End Style, Carbon Steel Body

BALON® LM-07362 LM Series Floating Ball Valve, 3/4 in Nominal, Thread End Style, Carbon Steel Body

  • Manufacturer: Balon Corporation
  • Brand Name: BALON®
  • Part#: 236748
  • MPN: LM-07362
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

BALON® Floating Ball Valve, Series: LM Series, 3/4 in Nominal, Thread End Style, 3000 psi Pressure, Lever Operated Actuator, 316 Stainless Steel Ball, 3.62 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Carbon Steel Body, 316 Stainless Steel Stem and Nylon Ball Seat Trim

Actuator Type      :      Lever Operated
Ball Material      :      316 Stainless Steel
Body Material      :      Carbon Steel
End Style      :      Thread
Inlet to Outlet Length      :      3.62 in
Nominal Size      :      3/4 in
Pressure Rating      :      3000 psi
Series      :      LM Series
Top to Inlet Center      :      2-1/4 in
Trim Material      :      316 Stainless Steel Stem and Nylon Ball Seat
  • Multi-seal seats
  • 316 stainless steel ball and stem standard
  • Locking device standard
  • Fire safe design
  • Maintenance-free
  • Bolted body construction
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Balon_LM-07362_Specification_Sheet.pdf
