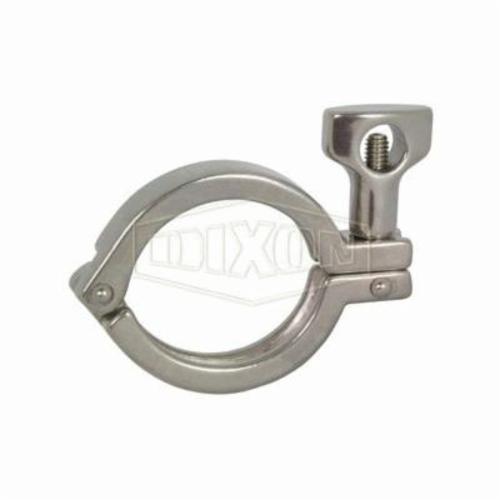

Dixon® 13MHHM500 1-Pin Heavy Duty Clamp With Cross Hole Wing Nut, 5 in Tube, 304 Stainless Steel, Domestic
- Manufacturer: Dixon Valve & Coupling
- Brand Name: Dixon Valve & Coupling
- Part#: 74456
- MPN: 13MHHM500
- UPC: 089109781843
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: 1/BX
-
Price:
- Add To Favorites
Dixon® Clamp, 1-Pin Heavy Duty, 5 in Tube, 25 in-lb Recommended Torque, 304 Stainless Steel, Domestic
| Domestic/Import | : | Domestic |
| Material | : | 304 Stainless Steel |
| Recommended Torque | : | 25 in-lb |
| Tube Size | : | 5 in |
| Type | : | 1-Pin Heavy Duty |
- Wing nut tightened to 25 in-lb of torque
- 225 psi at 70 deg F and 100 psi at 250 deg F pressure
- Service pressure ratings are based on the following parameters: matching elastomer gasket and weld ferrules properly aligned and assembled with the clamps tightened to required torques, tests are done hydrostatically with no water hammer or shock loads
- Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures
