Dixon Valve & Coupling 3020-B-AL 193603
  1. pin-int

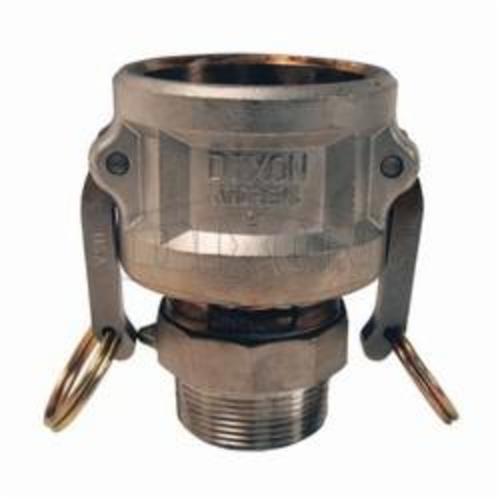

Dixon® 3020-B-AL Type B Cam and Groove Reducing Coupler, 2 x 3 in Nominal, Female Coupler x MNPT End Style, Aluminum, Domestic

Dixon® 3020-B-AL Type B Cam and Groove Reducing Coupler, 2 x 3 in Nominal, Female Coupler x MNPT End Style, Aluminum, Domestic

  • Manufacturer: Dixon Valve & Coupling
  • Brand Name: Dixon Valve & Coupling
  • Part#: 193603
  • MPN: 3020-B-AL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Dixon® Cam and Groove Reducing Coupler, Type B, Reducing Coupling Fitting/Connector, 2 x 3 in Nominal, Female Coupler x MNPT End Style, 125 psi Pressure, Aluminum, Domestic

Domestic/Import      :      Domestic
End Style      :      Female Coupler x MNPT
Fitting/Connector Type      :      Reducing Coupling
Material      :      Aluminum
Nominal Size      :      2 x 3 in
Pressure Rating      :      125 psi
Type      :      Type B
  • Precision machined to rigid tolerances
  • Stainless pins will not rust or bind, providing great strength and safety
  • Recess holds gasket firmly in place - ensures proper placement
  • Buna-N gasket
  • Durable stainless steel cam arm pins
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • In reducing couplings, the cam and groove end is the first size in the part number
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
