Dixon Valve & Coupling 3020-F-AL 267424
  1. pin-int

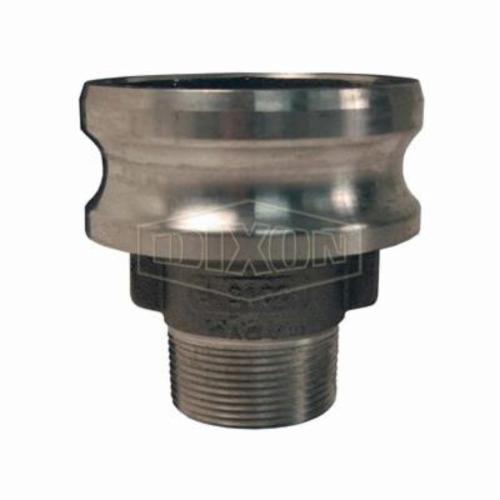

Dixon® 3020-F-AL Type F Cam and Groove Reducing Adapter, 2 x 3 in, Male Adapter x MNPT, Aluminum, Domestic

Dixon® 3020-F-AL Type F Cam and Groove Reducing Adapter, 2 x 3 in, Male Adapter x MNPT, Aluminum, Domestic

  • Manufacturer: Dixon Valve & Coupling
  • Brand Name: Dixon Valve & Coupling
  • Part#: 267424
  • MPN: 3020-F-AL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Dixon® Cam and Groove Reducing Adapter, Type F, Fitting/Connector Type: Adapter, 2 x 3 in Nominal Size, Male Adapter x MNPT, 3-5/8 in Length, 125 psi, Aluminum, 3-19/32 in Dia, Domestic

Dimensions      :      3-19/32 in Dia
Domestic/Import      :      Domestic
End Style      :      Male Adapter x MNPT
Fitting/Connector Type      :      Adapter
Length      :      3-5/8 in
Material      :      Aluminum
Nominal Size      :      2 x 3 in
Pressure Rating      :      125 psi
Type      :      Type F
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • In reducing couplings, the cam and groove end is the first size in the part number
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
