Dixon Valve & Coupling 3040-A-AL 163719
  1. pin-int

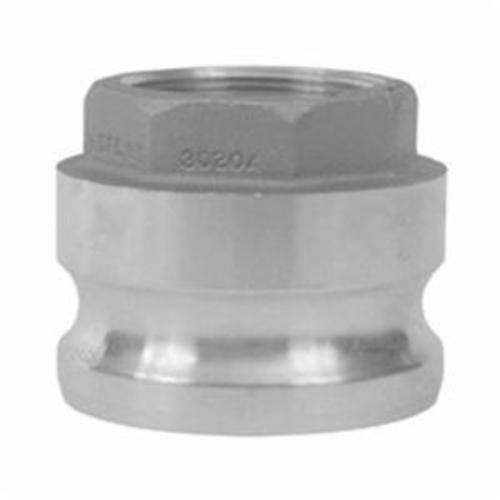

Dixon® 3040-A-AL Type A Cam and Groove Reducing Coupler, 4 x 3 in Nominal, Male Adapter x FNPT End Style, Aluminum, Domestic

Dixon® 3040-A-AL Type A Cam and Groove Reducing Coupler, 4 x 3 in Nominal, Male Adapter x FNPT End Style, Aluminum, Domestic

  • Manufacturer: Dixon Valve & Coupling
  • Brand Name: Dixon Valve & Coupling
  • Part#: 163719
  • MPN: 3040-A-AL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Dixon® Cam and Groove Reducing Coupler, Type A, Reducing Coupling Fitting/Connector, 4 x 3 in Nominal, Male Adapter x FNPT End Style, 4-1/8 in Length, 100 psi Pressure, Aluminum, Domestic

Domestic/Import      :      Domestic
End Style      :      Male Adapter x FNPT
Fitting/Connector Type      :      Reducing Coupling
Length      :      4-1/8 in
Material      :      Aluminum
Nominal Size      :      4 x 3 in
Pressure Rating      :      100 psi
Type      :      Type A
  • Precision machined to rigid tolerances
  • Produced as a welded fabrication construction
  • Pressure rating is based on the seal of the mating part
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • In reducing couplings, the cam and groove end is the first size in the part number
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
