Dixon Valve & Coupling 400-AL-AL 55066
  1. pin-int

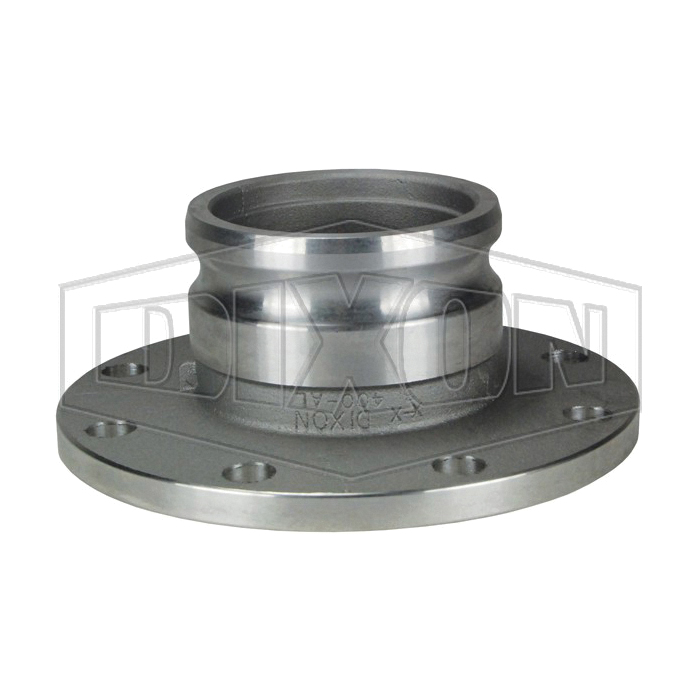

Dixon® 400-AL-AL Cam and Groove Adapter, 4 in, Adapter x Class 150 Flange, Aluminum

Dixon® 400-AL-AL Cam and Groove Adapter, 4 in, Adapter x Class 150 Flange, Aluminum

  • Manufacturer: Dixon Valve & Coupling
  • Brand Name: Dixon Valve & Coupling
  • Part#: 55066
  • MPN: 400-AL-AL
  • UPC: 089109700899
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Dixon® Cam and Groove Adapter, Fitting/Connector Type: Adapter, 4 in Nominal Size, Adapter x Class 150 Flange, 5/8 in Thickness, 3-9/16 in Length, 100 psi, Aluminum, 9 in Dia

Dimensions      :      9 in Dia
End Style      :      Adapter x Class 150 Flange
Fitting/Connector Type      :      Adapter
Length      :      3-9/16 in
Material      :      Aluminum
Nominal Size      :      4 in
Pressure Rating      :      100 psi
Thickness      :      5/8 in
  • Aluminum and unplated iron flanges are flat faced
  • Stainless steel flanges are raised face
  • Flanges are designed to mate with 150 lb flange
  • Flanges have the same bolt hole pattern as an ANSI 150 lb. flange, the thickness may vary
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • 100 psi at ambient temperature 70 deg F pressure
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
  • 356T6 Aluminum
