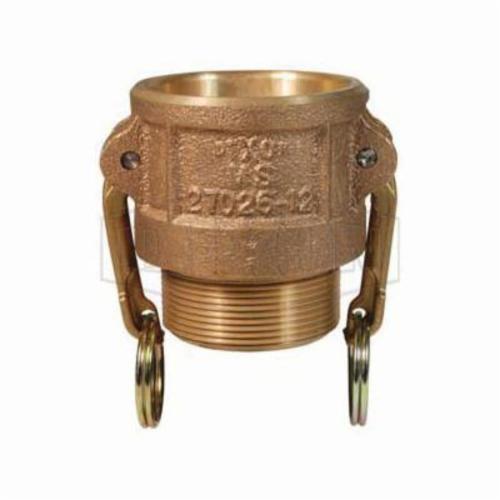

Dixon® 50-B-BR Type B Cam and Groove Coupler, 1/2 in Nominal, Female Coupler x MNPT End Style, Brass, Domestic
- Manufacturer: Dixon Valve & Coupling
- Brand Name: Dixon Valve & Coupling
- Part#: 234218
- MPN: 50-B-BR
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Dixon® Cam and Groove Coupler, Type B, Coupling Fitting/Connector, 1/2 in Nominal, Female Coupler x MNPT End Style, 1-13/32 in Length, 150 psi Pressure, Brass, Domestic
| Domestic/Import | : | Domestic |
| End Style | : | Female Coupler x MNPT |
| Fitting/Connector Type | : | Coupling |
| Length | : | 1-13/32 in |
| Material | : | Brass |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 150 psi |
| Type | : | Type B |
- 2-9/16 in open across cam arm
- Precision machined to rigid tolerances
- Stainless pins will not rust or bind, providing great strength and safety
- Recess holds gasket firmly in place - ensures proper placement
- Buna-N gasket
- Durable stainless steel cam arm pins
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Dixon and boss-lock cam and groove couplings do not interchange in the 1/2 in size
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
