Dixon Valve & Coupling 75BBR 257137
  1. pin-int

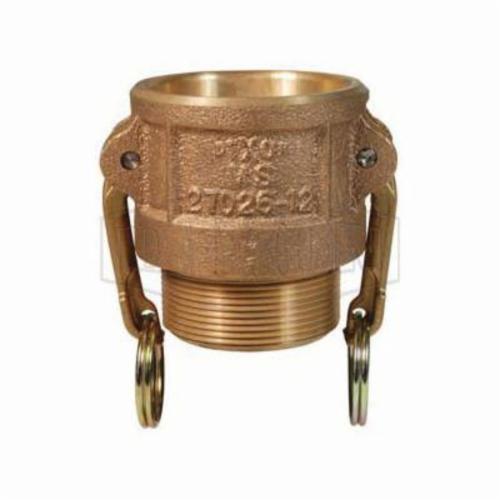

Dixon® 75BBR Type B Cam and Groove Coupler, 3/4 in Nominal, Female Coupler x MNPT End Style, Brass, Domestic

Dixon® 75BBR Type B Cam and Groove Coupler, 3/4 in Nominal, Female Coupler x MNPT End Style, Brass, Domestic

  • Manufacturer: Dixon Valve & Coupling
  • Brand Name: Dixon Valve & Coupling
  • Part#: 257137
  • MPN: 75BBR
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Dixon® Cam and Groove Coupler, Type B, Coupling Fitting/Connector, 3/4 in Nominal, Female Coupler x MNPT End Style, 2-1/32 in Length, 250 psi Pressure, Brass, Domestic

Domestic/Import      :      Domestic
End Style      :      Female Coupler x MNPT
Fitting/Connector Type      :      Coupling
Length      :      2-1/32 in
Material      :      Brass
Nominal Size      :      3/4 in
Pressure Rating      :      250 psi
Type      :      Type B
  • 4-7/32 in open x 2-1/8 in closed across cam arm
  • Precision machined to rigid tolerances
  • Stainless pins will not rust or bind, providing great strength and safety
  • Recess holds gasket firmly in place - ensures proper placement
  • Produced to interchange with all product produced to commercial item description A-A-59326D
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_75BBR_Catalog.pdf
  • linkVIDEO LINK http://youtu.be/Vgth_9M5IRM?list=PL10BD55ADAF82DEDA
