Dixon Valve & Coupling PPD300 257184
  1. pin-int

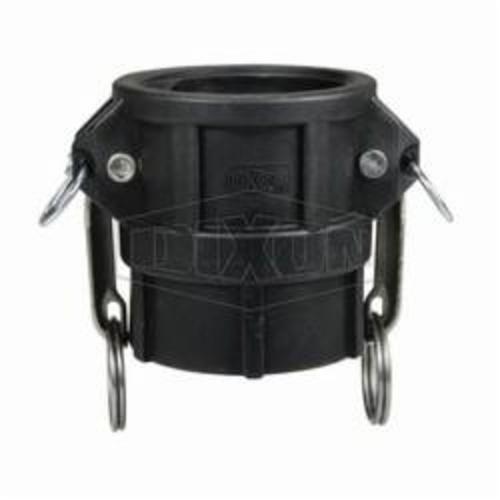

Dixon® PPD300 Type D Cam and Groove Coupler, 3 in Nominal, Female Coupler x FNPT End Style, Polypropylene, Domestic

Dixon® PPD300 Type D Cam and Groove Coupler, 3 in Nominal, Female Coupler x FNPT End Style, Polypropylene, Domestic

  • Manufacturer: Dixon Valve & Coupling
  • Brand Name: Dixon Valve & Coupling
  • Part#: 257184
  • MPN: PPD300
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Dixon® Cam and Groove Coupler, Type D, Coupling Fitting/Connector, 3 in Nominal, Female Coupler x FNPT End Style, 60 psi Pressure, Polypropylene, Domestic

Domestic/Import      :      Domestic
End Style      :      Female Coupler x FNPT
Fitting/Connector Type      :      Coupling
Material      :      Polypropylene
Nominal Size      :      3 in
Pressure Rating      :      60 psi
Type      :      Type D
  • Manufactured from glass-filled polypropylene
  • EPDM gaskets
  • 304 stainless steel handles and pins
  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F (21 deg C) with a standard seal installed
  • Polypropylene cam and groove should not be mixed with metal fittings
  • Not recommended for use with PTFE gaskets
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dixon_Valve_Coupling_PPLSS22_Catalog.pdf
