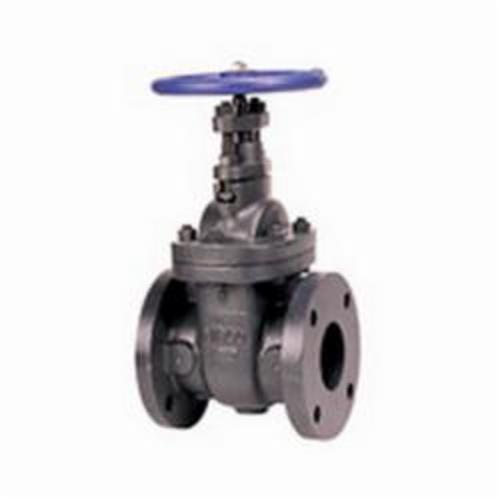

Gate Valve 4 in Nominal Flanged End Style 125 lb Cast Iron Body Handwheel Actuator

The NIBCO® cast iron gate valve provides full flow with minimal pressure drop. The cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. The iron body bronze mounted (IBBM) valve has a bolted bonnet and non-rising stem. Non-rising stem gate valves are recommended when positive shutoff is required and where space is a premium.Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® valves are backed by the NIBCO® 5-year 125 percent limited warranty.

NIBCO® Gate Valve, Series: F-619, 4 in Nominal, Flanged End Style, 200 psi Pressure, 125 lb Pressure Class, 450 deg F, Media: Air/Gas/Water, Handwheel Actuator, 9 in Inlet to Outlet Length, 15-3/4 in Top to Inlet Center, Cast Iron Body, Brass Trim, Graphite Softgoods, 10 in Diameter Hand Wheel, Domestic

• 125 psi/8.6 bar saturated steam to 353 deg F
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Bolted bonnet
• Solid wedge
• Cast bronze alloy C84400 wedge bushings/seat ring/wedge face ring, cast iron class B wedge/bonnet/stuffing box
• Synthetic fibers body kit/stuffing box gaskets/packing
• Non-Rising stem
• Synthetic fiber with graphite packing

• SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_PX10504_SDS.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nibco_NHAC00D_Specification_Sheet.pdf
